4D LCD 70800480 7.0" TFT Liquid Crystal Displays

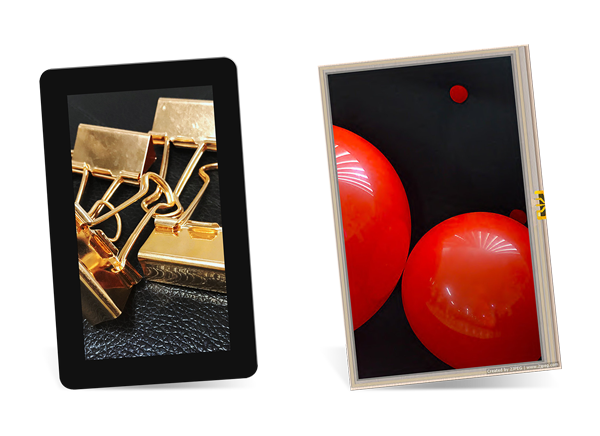

4D LCD 70800480 7.0" TFT Liquid Crystal Displays are color-active matrix LCD modules incorporating an amorphous silicon thin-film transistor. The 70800480 displays include a color TFT-LCD panel, driver IC, FPC, and a backlight unit. Available options include a Resistive/Capacitive Touch Panel (RTP or CTP) and a Cover Lens Bezel (CLB). The 4D LCD 70800480 7.0" TFT Liquid Crystal Displays provide a module display area of 800 x 480 pixels.

Features

LCD types of TFT / Transmissive / Normally white
7" size
The touch panel is available in non-touch, resistive touch, and capacitive touch
12:00 viewing direction
6:00 gray scale inversion direction
153.84mm x 85.63mm active area (W x H)
0.1923mm x 01.1784mm dot pitch (W x H)
Source (EK9716) and gate (EK73002) driver IC
Parallel RGB 24-bit interface type
Surface luminance
- 4DLCD-70800480: 500cd/m² (typical)
- 4DLCD-70800480-RTP: 400cd/m² (typical)
- 4DLCD-70800480-CTP: 475cd/m² (typical)
- 4DLCD-70800480-CTP-CLB: 475cd/m² (typical)
16.7M color depth

RGB vertical stripe pixel arrangement
27 LEDs backlight type
800 x 480 display resolution pixels
AG surface treatment
3.3V (typical) input voltage

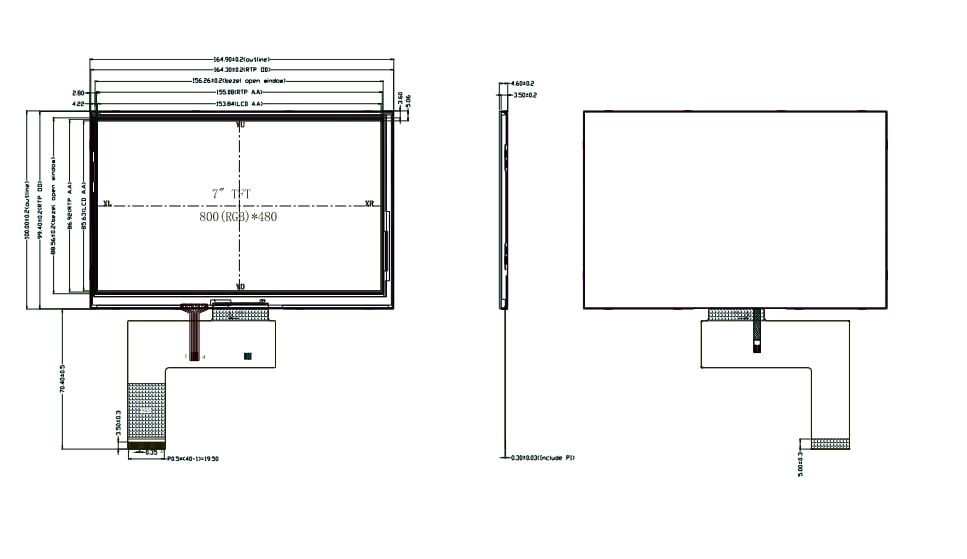

Module size - W x H x T
- 4DLCD-70800480: 164.90mm x 100.00mm x 3.50mm
- 4DLCD-70800480-RTP: 164.90mm x 100.00mm x 4.60mm
- 4DLCD-70800480-CTP: 164.90mm x 100.00mm x 5.25mm
- 4DLCD-70800480-CTP-CLB: 190.08mm x 121.92mm x 5.15mm
-20°C to +70°C operating temperature range
RoHS compliant
