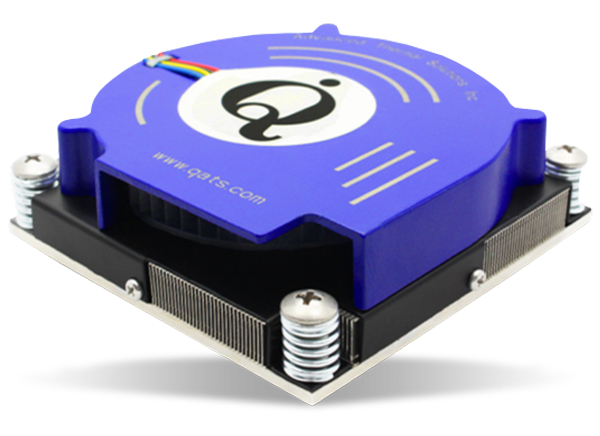

Advanced Thermal Solutions dualFLOW™/quadFLOW™ CPU Coolers for Servers

Advanced Thermal Solutions dualFLOW™/quadFLOW™ CPU Coolers for Servers are designed for 1U and 2U applications where space and airflow are restricted. These heat sinks have a Pulse Width Modulation-enabled blower with 10.8V_DC to 13.2V_DC operating voltage. A vapor chamber base option improves heat spreading when the heat source is small or not uniform while an optional standard backing plate accommodates the cooling of any high-powered device. ATS dualFLOW/quadFLOW CPU Coolers offer at least 20% improvement over comparable products on the market. These devices have a nickel-plated finish.

Features

Ideal for 1U and 2U applications where space and airflow are restricted
QuadFLOW allows for air intake from all sides
Offers at least 20% improvement over comparable products on the market
Vapor chamber base option improves heat spreading when heat source is small or not uniform
Hardware provides 92PSI (63kPa) when installed

Designed for CPUs that fit the IntelTIA LGA2011 square and LGA2066 sockets (Socket R)
Pulse Width Modulation-enabled blower
10.8V_DC to 13.2V_DC operating voltage
Mechanical attachment is PEM, screws, and spring
Provided with Diomedes T670 thermal grease
Optional standard backing-plate to accommodate cooling of any high-powered device
