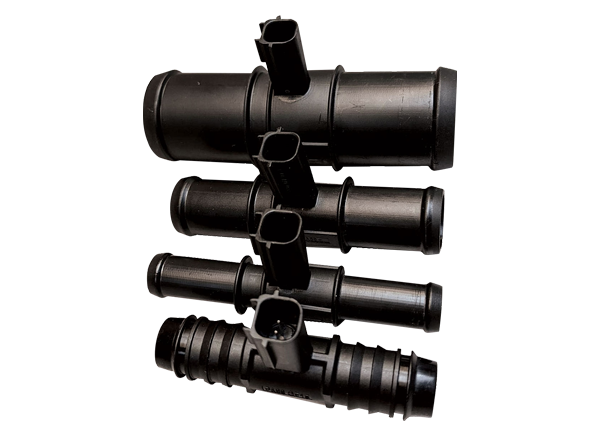

Amphenol Advanced Sensors Inline Flow-Through Temperature Sensors for automotive and industrial applications monitor the temperature of a fluid that passes through it. This temperature reading is then put into a system control module that uses the temperature reading to control the overall system temperature via a control loop. The sensor can monitor engine temperature, heater temperature, industrial supply temperature, and more. Amphenol Advanced Sensors Inline Flow-Through Temperature Sensors feature high sensitivity, fast response time, and an operating temperature range of -40°C to +120°C.
Fast response time
Wide application range
SAE J-1231 interface
USCAR-sealed connection system
Engine coolant temperature
Battery-pack coolant line temperature
Process flow measurement
HVAC water management
-40°C to +120°C temperature range
5V supply voltage
15s response time in flowing water
Typical Circuit Diagram
Amphenol Advanced Sensors IP67 Coolant Temperature Sensor (CTS)
Monitors the temp of coolant that is being pumped around a battery to cool the module of EV/PHEVs.
