Amphenol Sine Systems DuraLok™ Dual-Locking Connectors

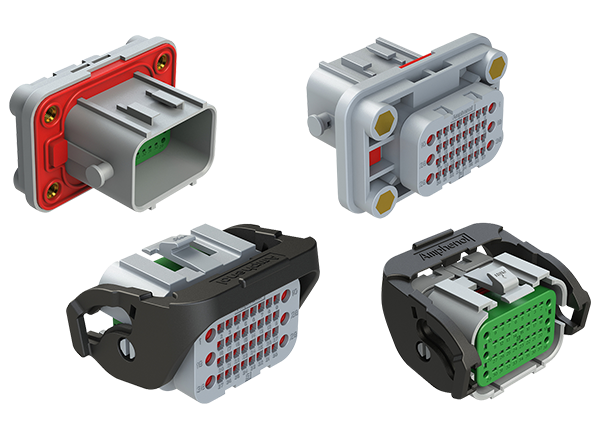

Amphenol Sine Systems DuraLok™ Dual-Locking Connectors are a high-density, heavy-duty, IP67 rated (mated), environmentally sealed connector series. The DuraLock series is available in both plugs and receptacles, with three keying options (A, B, and C). The robust, integrated locking lever, built directly into the plug housing, ensures a secure mating with the receptacle every time.
Features
- Available in 38 positions (6 power/32 signal configuration)
- Integrated locking lever
- Combined power and signal in one
- A, B, and C keying options
- Reduced diameter seal (-S1) or standard seal (-S2) option
Applications
- Heavy equipment
- Agriculture
- Construction
- Transportation
- Off-road
- Mining
- Industrial
- Railway
- Automotive
- Diagnostics
- Marine
- Water resistance
- Harsh environments
Specifications
- 13.5A (power), 5A (signal) maximum current rating
- 250VAC/DC voltage rating
- IP67 (in mated condition)
- 22AWG to 14AWG wire range
- >500 mating cycles
- <2mA current leakage at 2000VAC
- 500MΩ minimum insulation resistance
- -40°C to +125°C temperature range
