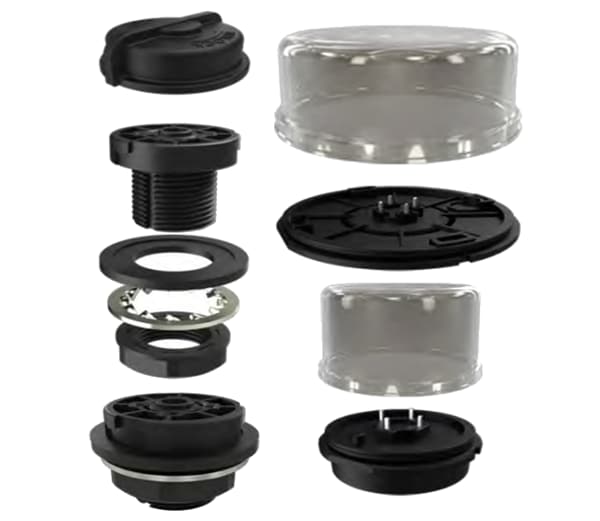

Amphenol Commercial FLS Zhaga Book 18 Receptacles are designed with four contacts for power, DALI, and digital I/O. It mounts to the luminaire in a single hole with a mounting nut and gasket. The FLS base/extension module and dome mate together to form the housing for a photocell/sensor module assembly.
The receptacle is compatible with and mates to all photocells built with an Amphenol Book 18 base/extension module, which is available in 40mm and 80mm diameters, as well as any certified Zhaga Book 18 extension module. The receptacle features tool-less receptacle contacts for 20AWG to 16AWG wire with poke-in wire termination and, when mated with a photocell, seals to IP65/IP66.
A Zhaga Book 18 protective cap is also available for receptacles that do not have a photocell connected to them.
