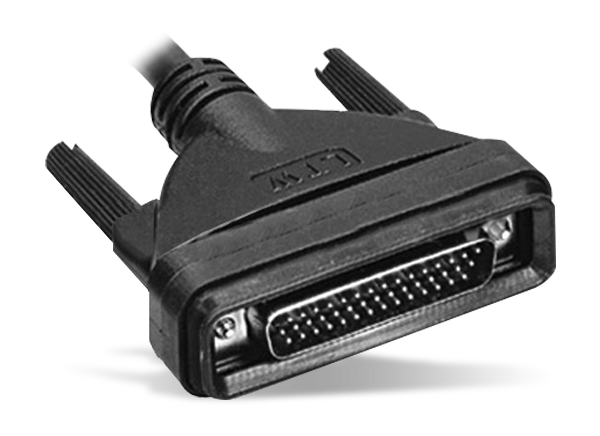

Amphenol LTW High Density D-Sub Connectors

Amphenol LTW High Density D-Sub Connectors offer a rated current of 2A and an operating temperature range of -20°C to +105°C. These connectors feature a waterproof rating of IP67 or IP68 and are available in a range of options, including receptacles, overmolded with cable, and field installable. This Amphenol LTW series provides a broad range of higher reliability connectors that can be used in a variety of industries, including computer, industrial, medical, and military markets.


  • Receptacles, overmolded with cable, and field installable
  • High density
  • 2A rated current
  • -20°C to +105°C operating temperature range
  • IP67 or IP68 waterproof rating
  • ≤20mΩ contact resistance
  • ≥500mΩ insulation resistance at 500VDC
  • ≥500VAC breakdown voltage (1 minute)


  • Computers
  • Industrial
  • Medical
  • Military markets
