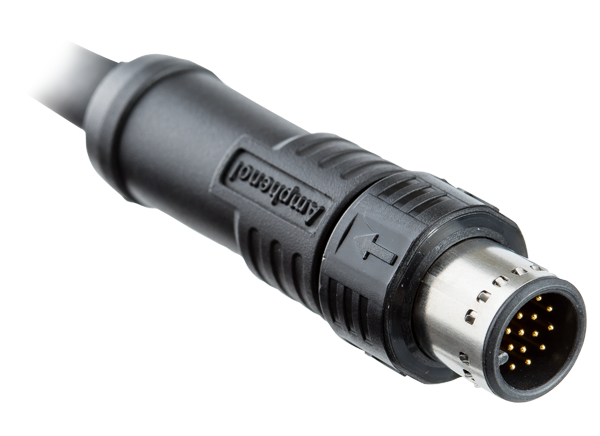

Amphenol LTW MPRONTO-12 M-12 Push-Pull Connectors
Amphenol LTW MPRONTO-12 M-12 Push-Pull Connectors are spring lock designed for backward compatibility with all M12 1.0 thread socket according to IEC standard. These connectors are uniquely designed with one simple push-to-plug and pull-to-unplug. The M-12 push-pull connectors save over 80% installation time over the standard M12 screw thread mating. These connectors meet IP67, IP68, and IP69K ingress protection along with RoHS compliance and UL94V-0 flammability standards. Typical applications include industrial automation, lift and material handling, hybrid Electric Vehicle (EV), and heavy equipment.
Features
- Easy, fast, secure, and reliable
- Spring lock design with quick installation
- Backward compatibility with all the female M12 1.0 thread sockets made by different manufacturers
- One simple push-to-plug and pull-to-unplug
- 500 cycles durability
- Supports A, B, D, K, L, M, S, T, Y, X coding
- Save over 80% installation time vs. standard M12 screw thread mating
- Meet IP67, IP68, and IP69K ingress protection
- Contacts up to 17-pins
- Salt spray up to 48hrs
- RoHS compliant and UL94V-0 flammability standards
Applications
- Industrial automation
- Lift and material handling
- Hybrid Electric Vehicle (EV)
- Heavy equipment
