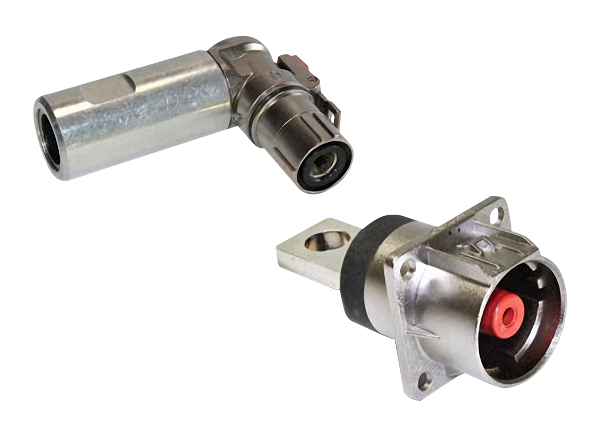

Amphenol Technical Products International PowerLok® G2 Heavy-Duty Power Connectors
Amphenol Technical Products International (TPI) PowerLok® G2 Heavy-Duty Power Connectors feature RADSOK® contact technology and a 60A to 600A operating current. Amphenol Technical Products PowerLok G2 Connectors offer a quick locking lever with connection position assistance (CPA) and a receptacle shell with high-voltage interlock (HVIL) integrated for high vibration. These 1000V connectors provide IP67-IP6K9K in mated condition and IP2X in an unmated condition. This 1- to 3-pole series is available with different color coding and mechanical keying options.
Features
- RADSOK® contact technology
- Quick-locking lever feature with connector position assistance (CPA)
- Metal Aluminum light-weight receptacle shell with high-voltage interlock (HVIL) integrated
- Suitable for high vibration
- Field installable plug with hexagonal crimp tools
- 60A to 600A operating current
- 1000V voltage rating
- Available with different color coding and mechanical keying options, also on panel connector
- RoHS and REACH compliant
- IP67-IP6K9K in mated condition
- IP2X in unmated condition
- Right-angle and straight-plug versions available
- EMI Cable termination and EMI coil spring on the receptacle
- <10mΩ from the screen panel
- Current carrying capacity over shielding of 20% of the connector power
- 1 to 3 poles available
- 500H salt spray with gray zinc-nickel plating
- Common material used on 1/2/3 way both straight and right-angle PL300
- Saves on validation time
Specifications
- PL60
- Available in 2 + HVIL and handles cables from 2.5mm2 to 10mm2
- PL300
- Available in 1, 2, and 3 poles + HVIL and handles cables from 50mm2 to 70mm2
- PL500
- Available in single-pole only + HVIL and handles cables from 70mm2 to 120mm2
G2 Overview
