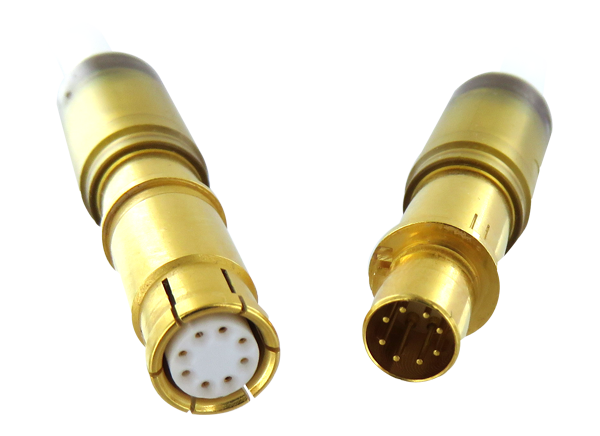

Amphenol Socapex OctoMax 1G26 Contacts
Amphenol Socapex OctoMax 1G26 Contacts offer an impedance rating of 100Ω at 100MHz, a rated current of 1A per contact, and a minimum of 500 mating cycles. The contacts feature eight strategically spaced inner contacts that form four 100Ω matched impedance differential pairs, making them equivalent to two quadrax. Amphenol Socapex OctoMax 1G26 Contacts feature a copper alloy body construction and a thermoplastic insulator. They are ideal for Ethernet, ground vehicles, and commercial aerospace applications.
Features
- Eight strategically spaced inner contacts that form four 100Ω matched impedance differential pairs
- Can be installed in existing size 8 Quadrax cavities
- Supports 26AWG for crimp termination
- Available in a PC tail version
Specifications
- 1A rated current/contact
- 100Ω impedance
- Durability: minimum of 500 mating cycles
- Shocks: MIL-DTL-38999 Series III
- Vibrations: MIL-DTL-38999 Series III
- -65°C to +175°C temperature range
- Material
- Inner contact: Copper alloy
- Body: Copper alloy
- Insulator: Thermoplastic
- Contact plating: Gold over nickel plating
Applications
- C4ISR
- Ground vehicles
- Commercial aerospace
- Space
- Ethernet
- Avionics Full Duplex Switched Ethernet (AFDX)
