Analog Devices Inc. AD849x-EVALZ Evaluation Boards

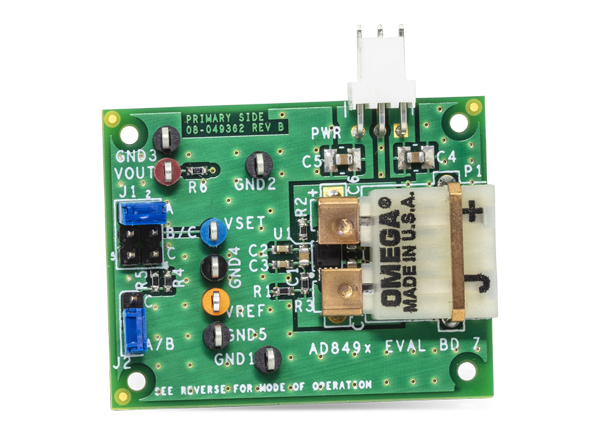

Analog Devices Inc. AD849x-EVALZ Evaluation Boards demonstrate the functionality of the AD8494, AD8495, AD8496, and AD8497 Precision Thermocouple Amplifiers. These 4-layer Evaluation Boards are designed to allow users to quickly prototype the AD849x Amplifiers for various user defined configurations for different applications. The AD849x-EVALZ Evaluation Boards have three modes of operation: Linear Mode, Setpoint Controller Mode, and Hysteresis on Setpoint Controller Mode.

Features

Evaluation platform for the AD8494, AD8495, AD8496, and AD8497 Precision Thermocouple Amplifiers
Includes J Type thermocouple connector for AD8494/AD8496 or K Type thermocouple connector for AD8495/AD8497
Modes of operation
- Linear Mode (default)
- Setpoint Controller Mode
- Hysteresis on Setpoint Controller Mode
Internal cold junction compensation
Reference pin allows offset adjustment
+5V_DC supply voltage required
