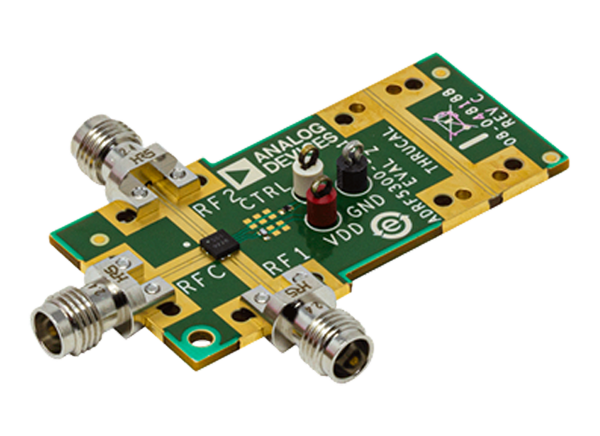

Analog Devices Inc. ADRF5300-EVALZ Evaluation Board is a platform for evaluating the ADRF5300 Reflective SPDT Switch performance. The ADRF5300 Reflective SPDT Switches are manufactured in the silicon process and developed for 5G applications ranging from 24GHz to 32GHz.
The ADRF5300-EVALZ Evaluation Board is populated with a 2.4mm Hirose connector and assembled with the ADRF5300 device and application circuity.
Contains ADRF5300 device and external components
Simple connection to test equipment
On-board through line for calibration
DC power supply
Network and spectrum analyzer
Analog Devices Inc. ADRF5300 Reflective SPDT Switches
Manufactured in the silicon process and developed for 5G applications ranging from 24GHz to 32GHz.
