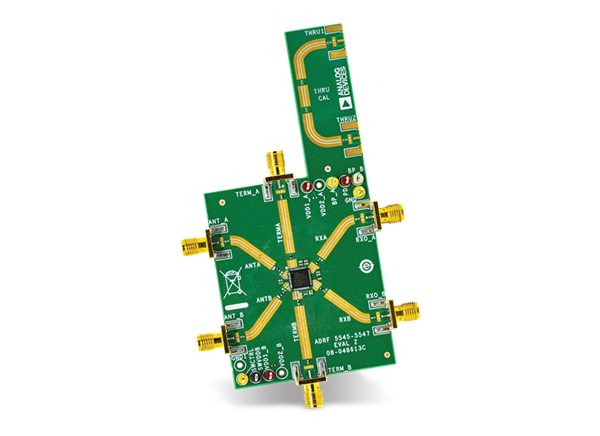

Analog Devices ADRF5547-EVALZ Receiver Front End Evaluation Board is for the evaluation of the ADRF5547. The ADRF5547 is a dual-channel integrated radio frequency (RF) front end ideally suited for time-division duplexing (TDD) wireless infrastructure applications. The ADRF5547 is a multichip device that consists of a high power switch and a dual-stage low noise amplifier on each channel. The evaluation board is easy to connect to test equipment which makes evaluation of the ADRF5547 easier.
Full-featured evaluation board for the ADRF5547
Easy connection to test equipment
Thru line for calibration
DC power supply
Spectrum analyzer Network analyzer
Analog Devices Inc. ADRF5547 RF Front-End Multichip Module
Designed for time-division duplexing (TDD) applications that operate from 3.7GHz to 5.3GHz.
