Analog Devices Inc. ADRV9008/9 Eval Radio Card for RF Radio Solutions

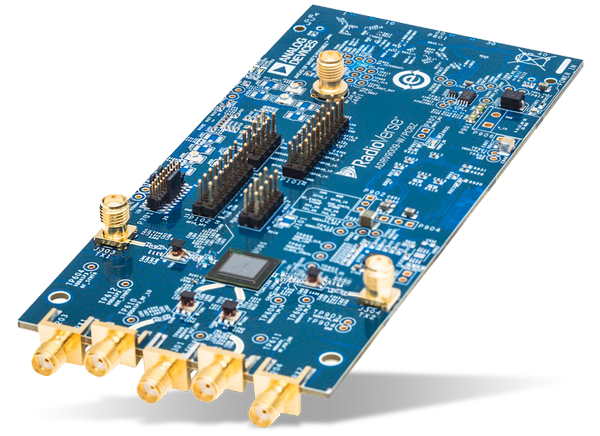

Analog Devices Inc. ADRV9008/9 Eval Radio Card for RF Radio Solutions are Radio Cards designed to showcase the ADRV9008-1 RF Receiver, ADRV9008-2 RF Transmitter, and ADRV9009 RF Transceiver. The Radio Cards provides a platform for device evaluation and rapid prototyping of radio solutions. These Radio Cards are designed to be used with the EVAL-TPG-ZYNQ3 Xilinx Zynq®-7000 Evaluation Kit.
Features
- Complete Radio Card for evaluation
- ADRV9009-W/PCBZ: Evaluation Kit for ADRV9009 (Dual RF Rx/Tx/ORx Evaluation Board)
- ADRV9008-1W/PCBZ: Evaluation Kit for ADRV9008-1 (Dual RF Rx Evaluation Board)
- ADRV9008-2W/PCBZ: Evaluation Kit for ADRV9008-2 (Dual RF Tx/ORx Evaluation Board)
- Wideband RF operation over 75MHz to 6GHz frequency range
- Complete with high-efficiency power supply solution and clocking solution
- FMC connector for EVAL-TPG-ZYNQ3 Xilinx Zynq-7000 Evaluation Kit
- Powered from a single FMC connector
- Includes schematics, layout, BOM, HDL, drivers, and application software
Kit Contents
- ADRV9009-W/PCBZ or ADRV9008-1W/PCBZ or ADRV9008-2W/PCBZ Radio Card
- Two 8GB SD cards
- Linux driver and IIO Scope (AD-FMC-SDCARD)
- Windows-based GUI (ADRV9009-SDCARD)
Videos
Evaluation Kit Options
For Evaluation Of
Analog Devices Inc. RadioVerse™ ADRV9009 Wideband RF Transceiver
Single chip RF solution integrating Dual Transmitters, Dual Receivers, and an Observation Receiver.
Analog Devices Inc. RadioVerse™ ADRV9008-1 Wideband RF Receiver
Dual wideband receiver supporting 200MHz bandwidth from 75MHz to 6GHz frequency range.
Analog Devices Inc. RadioVerse™ ADRV9008-2 Wideband RF Transmitter
Dual RF Transmitter with Observation Receiver supporting 450MHz bandwidth from 75MHz to 6GHz.
Required for Use
Analog Devices Inc. EVAL-TPG-ZYNQ3 Xilinx Zynq®-7000 Evaluation Kit
Provides a data capture platform for many of the RadioVerse wideband transceiver evaluation boards.
