Analog Devices Inc. LTC4283 Demo Board DC2480A

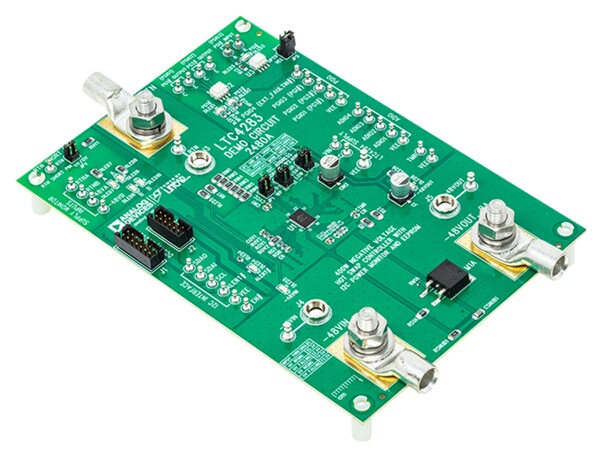

Analog Devices LTC4283 Demo Board DC2480A showcases the LTC4283 high power, negative hot-swap controller with energy monitor, and EEPROM in a -48V, 8A (400W) application. DC2480A offers a reliable, low-cost hotplug solution for high-power systems where input steps are imminent. Included onboard is isolation for power good control pins to enable downstream power converters. LEDs indicate the presence of -48V input and output, and the state of both supplies feeds and power good signaling. High voltage layout rules are followed throughout for the best long-term product reliability. Headers are provided for three I2C interfaces, providing instant access to voltage, current, power, energy, fault log, and board temperature data.
