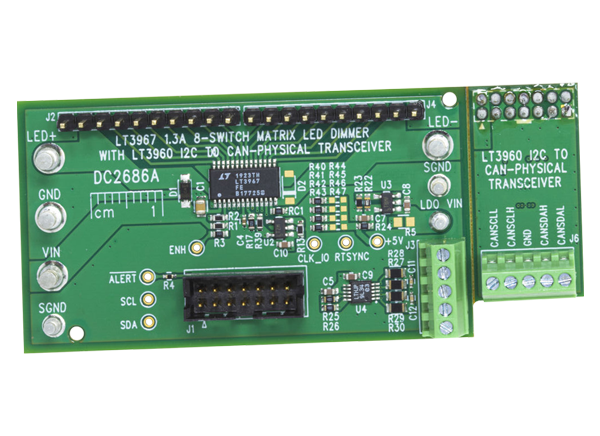

Analog Devices Inc. LT3960 Demo Board DC2686A
Analog Devices Inc. LT3960 Demo Board DC2686A is a 1.3A 8-switch matrix LED dimmer system with an I2C to CAN-physical transceiver featuring the LT3967 and LT3960. The DC2686A Demo Board connects directly to a LED string and LED driver demo circuit allowing for independent dimming control of up to 8 channels of LEDs. A Linduino® One demonstration circuit is used to interface with the Board and connect in two different ways. First, directly to a Linduino One demonstration circuit with a QuikEval™ ribbon cable. Secondly, using the LT3960 break-off board to connect to the I2C master device.
The Analog Devices Inc. LT3960 Demo Board DC2686A is designed to be easily configured and interfaced with a compatible low output capacitance LED driver and LED string. The Demo Board can easily be directly attached to a buck LED driver or a floating buck-mode LED driver.
Additional Resources
Supported Devices
Analog Devices Inc. LT3960 I2C to CAN-Physical Transceivers
Extends a single-master I2C bus in harsh environments up to 400kbps using the CAN-physical layer.
Analog Devices Inc. LT3967 LED Lighting Driver
LED bypass switching device that come with eight independent 15V/110mΩ NMOS switches.
Required for Use
Analog Devices Inc. Linduino® One (DC2026)
Arduino Uno-compatible Demonstration Board designed to interface with QuikEval™ Evaluation Boards.
Quick-Start Procedure Setup
Front & Back Layout
