Analog Devices Inc. LT1762/LT1962 Demo Boards DC339A-A/B

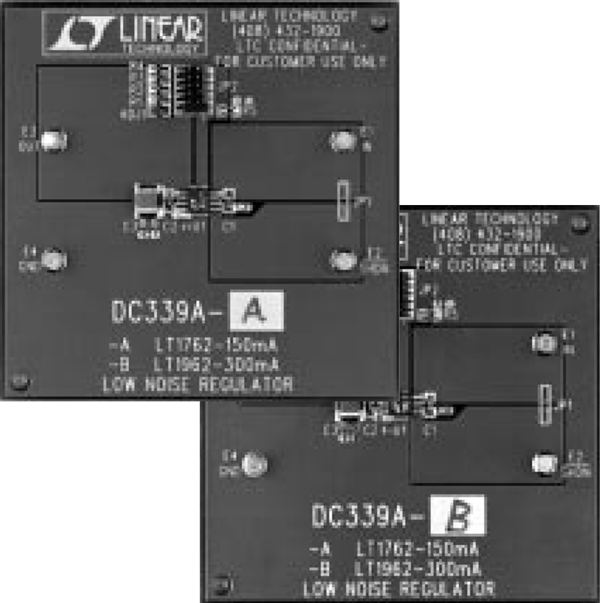

Analog Devices Inc. LT1762/LT1962 Demo Boards DC339A-A/B are demonstration and evaluation platforms for the LT1762 and LT1962 Low Noise Micropower LDO (Low Dropout) Regulators. The DC339A-A and DC339A-B each feature a typical application circuit, and include a pre-mounted LT1762 or LT1962 in the 8-lead MSOP package. These evaluation boards an input voltage range from 2.3V to 20.0V and a jumper-selectable output voltage that can be set to 1.22V, 2.5V, 3.0V, 3.3V, 5.0V or a user-defined value. The low 20µVRMS (10Hz to 100kHz bandwidth) output noise and low 30µA quiescent current of the LT1762 and LT1962 make these devices ideal for voltage-controlled oscillators, RF power supplies, and local regulators in larger systems.

Features

Board Type: Fully Populated
- DC339A-A: LT1762 150mA Micropower LDO Regulator in MSOP-8 Package
- DC339A-B: LT1962 300mA Micropower LDO Regulator in MSOP-8 Package
Regulator Topology: Buck
Outputs and Type: 1, Non-Isolated
Solid Turret Terminals for Easy Connection to Supplies and Test Equipment
Input Voltage Range: 2.3V to 20.0V
Output Voltage Options: 1.22V, 2.5V, 3.0V, 3.3V, 5.0V
Line Regulation: 1mV to 5mV
Quiescent Current: 30µA to 50µA
Load Regulation: 0.2% to 1.0%
SHDN Pin Threshold (On to Off): 0.65V (Typical)
SHDN Pin Threshold (Off to On): 0.8V (Typical)
Output Voltage Noise: 20µVRMS
