Analog Devices Inc. EVAL-AD7779FMCZ Evaluation Board
Analog Devices EVAL-AD7779FMCZ Evaluation Board is a full-featured board designed to help designers evaluate the capabilities of the AD7779 24-bit ADC. The AD7779 is included on the board.
EVAL-AD7779FMCZ interfaces with the System Demonstration Platform SDP-H1 controller board (EVAL-SDP-CH1Z). The SDP-H1 controller board supplies power to the EVAL-AD7779FMCZ and connects to a PC using a Windows® operating system via a USB cable.
AD7779's evaluation software fully configures the AD7779 device register functionality. The evaluation software also provides DC and AC time domain analysis in the form of waveform graphs, histograms, and associated noise analysis for ADC performance evaluation. The user PC software executable controls the AD7779 ADC over the USB cable using the SDP-H1 controller board.
Features
- Full-featured evaluation board for the AD7779 PC control in conjunction with the system demonstration platform (SDP), EVAL-SDP-CH1Z
- PC software control and data analysis
- Time and frequency domain
- Standalone hardware capability
Kit Contents
- EVAL-AD7779FMCZ evaluation board
- AD7779 evaluation software

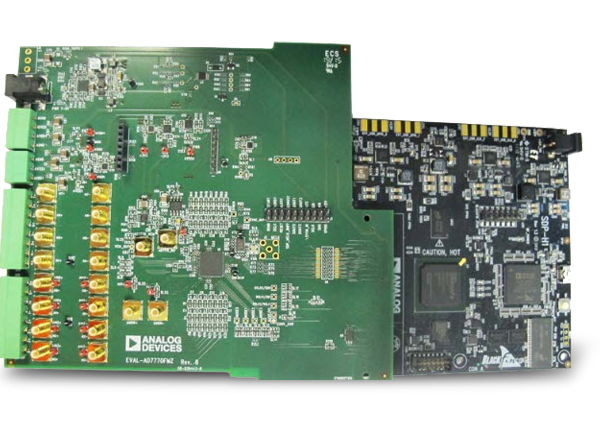

EVAL-AD7779FMCZ Evaluation Board with SDP-H1 Controller Board
Related Products
Analog Devices Inc. AD7779 24-Bit Simultaneous Sampling ADCs
8-channel Simultaneous Sampling ADCs; ensure fast power-up in circuit breaker equipment.
