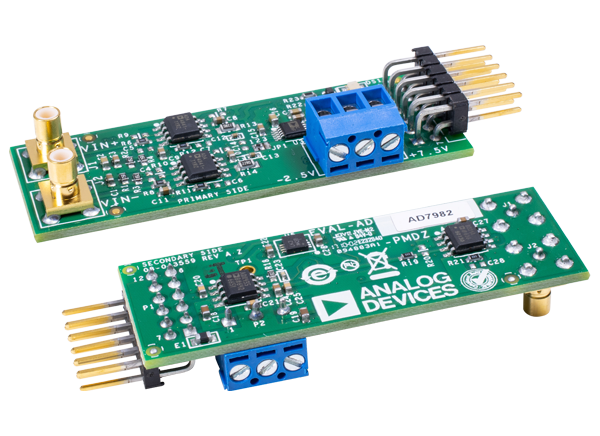

Analog Devices Inc. EVAL-AD7982-PMDZ Evaluation Board

Analog Devices EVAL-AD7982-PMDZ Evaluation Board with the PMOD-compatible form factor helps designers evaluate the AD7982 18-Bit, 1MSPS PulSAR® 7.0mW ADC in MSOP/QFN. The EVAL-AD7982-PMDZ board operates in stand-alone mode or in conjunction with the System Development Platform, EVAL-SDP-CB1Z. When operated with the System Development Platform software, the designer can perform a detailed analysis of the AD7982 ADC's performance. ADI recommends the ADZS-BRKOUT-EX3 break-out board when operating in stand-alone mode for access to various control pins.
