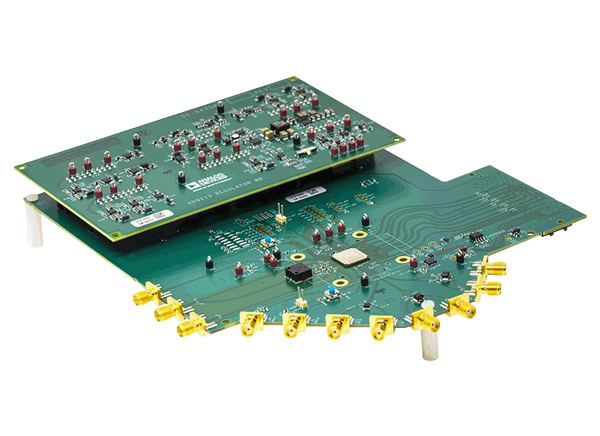

Analog Devices Inc. EVAL-AD9217 Evaluation Boards

Analog Devices Inc. EVAL-AD9217 Evaluation Boards are designed to evaluate the features of the AD9217 RF Analog-to-Digital Converter (ADC). This ADC features a high instantaneous dynamic range, low latency, high-speed parallel output port, on-chip temperature sensor and negative voltage generators, and low power dissipation. The EVAL-AD9217 eval boards provide all of the support circuitry required to operate the ADC in its various modes and configurations. These eval boards are designed to interface directly with the ADS8-V1EBZ FPGA-based data capture card that allows the captured data to be downloaded for analysis. The Analysis Control Evaluation (ACE) software package can be used for performing device control and subsequent data analysis.
