Analog Devices Inc. EVAL-ADA4355EBZ Evaluation System

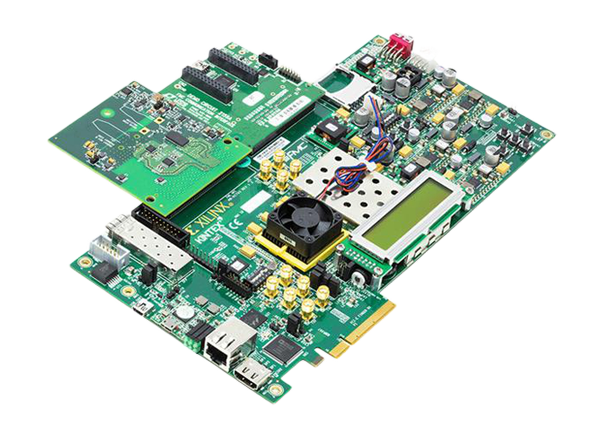

Analog Devices Inc. EVAL-ADA4355EBZ Evaluation System is configured to evaluate the operation of the ADA4355 Receive uModule. The EVAL-ADA4355EBZ System combines the ADI ADA4355 evaluation board with a Xilinx KC705 FPGA evaluation platform. The KC705 provides abundant memory, GPIOs, and processing power to perform all control and data manipulation functions.
The ADI EVAL-ADA4355EBZ Evaluation System uses a MATLAB-based, highly intuitive graphical user interface for all system control and data processing.
Features
- Complete hardware and software required to evaluate ADA4355 micro-module
- Only four connections required
- 12V power, 5V power, USB, fiber under test
- All system control and measurement options provided via intuitive, user-friendly GUI
Kit Contents
- 12V FPGA board supply and on/off switch
- 5V ADA4355 evaluation board supply
- Optional external photo diode (APD) voltage supply connector
- DC2159A communication interface board USB port
- ADA4355 receive uModule
Applications
- Current-to-voltage Conversion
- Chemical analyzers
- Mass spectroscopy
- Time of Flight (ToF)
- Fiber optic sensing
Additional Resources
Associated Products
