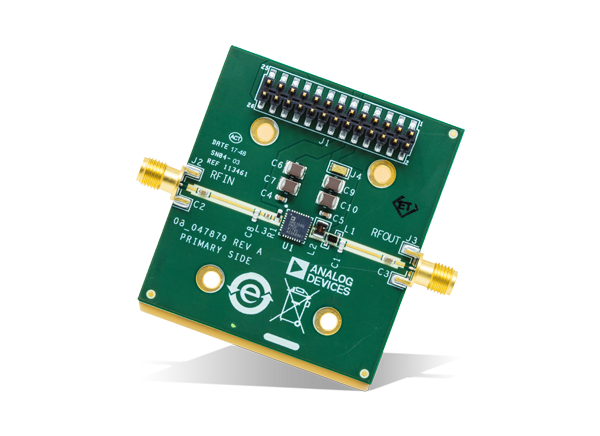

Analog Devices Inc. EVAL-HMC1099 Eval Board for the HMC1099 Power Amp evaluates the features and capabilities of the HMC1099 Power Amplifiers. Each evaluation board provides a 50Ω impedance for the signal lines and directly connect the package ground leads and exposed paddle to the ground plane. The board uses a sufficient number of via holes to connect the top and bottom ground planes. The EV1HMC1099PM5 is for the evaluation of the HMC1099PM5E and the EV1HMC1099LP5D is for the evaluation of the HMC1099LP5D.
Analog Devices Inc. Amplificadores de potência HMC1099 de 10W GaN
Amplificador de potência GaN MMIC, de 0,01 a 1,1GHz de 10W com potência de saída típica de 40,5dBm e 69% PAE.
