Analog Devices Inc. HMC441x GaAs pHEMT MMIC Medium Power Amplifiers deliver up to 20dB of gain, up to +22dBm of saturated power, and up to 27% PAE from a +5V supply voltage. The HMC441x Amplifiers feature an optional gate bias to allow adjustment of gain, RF output power, and DC power dissipation. These 50Ω matched amplifiers do not require any external components making them ideal for use as linear gain blocks or drivers for HMC SMT mixers.

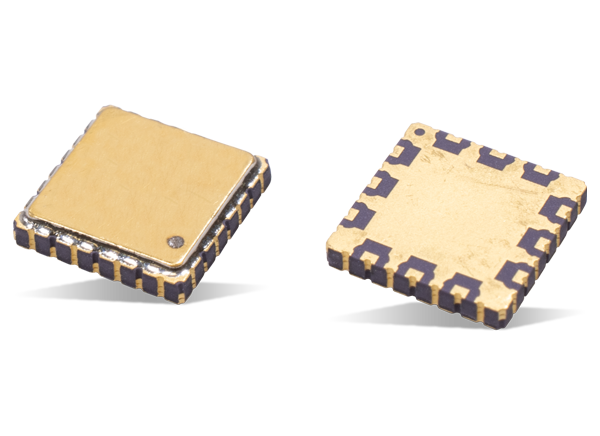

For design flexibility, the HMC441x Medium Power Amplifiers are offered in a variety of package sizes and types, including bare die.
Single Supply Voltage: +5V w/ Optional Gate Bias
50Ω Matched Input/Output
HMC441: 7GHz to 15GHz
HMC441LC3B: 6GHz to 18GHz
HMC441LH5: 7GHz to 15.5GHz
HMC441LM1: 7GHz to 15.5GHz
HMC441LP3: 6.5GHz to 13.5GHz
Point-to-Point and Point-to-Multi-Point Radios
LO Driver for HMC Mixers
Military EW & ECM
