Analog Devices Inc. LT1764/A LDO Regulators

Analog Devices Inc. LT1764/A LDO Regulators are optimized for fast transient response and are capable of supplying 3A of output current with a dropout voltage of 340mV. The LT1764/A Regulators feature a well controlled operating quiescent current of 1mA, dropping to <1µA in shutdown. The LT1764/A offers a fast transient response and very low output voltage noise which makes the device ideal for sensitive RF supply applications.

Additionally, the LT1764/A regulators are stable with output capacitors as low as 10µF, the output voltage range is from 1.21V to 20V. Internal protection circuitry includes reverse battery protection, current limiting, thermal limiting and reverse current protection. The LT1764/A is available in fixed output voltages of 1.5V, 1.8V, 2.5V, 3.3V and as an adjustable device with a 1.21V reference voltage.

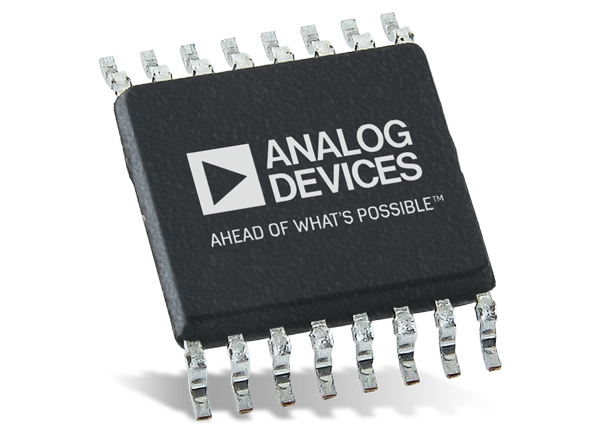

The LT1764/A LDO Regulators are offered in 5-lead TO-220, DD, and Exposed Pad 16-lead TSSOP packages.


  • Optimized for Fast Transient Response
  • Output Current: 3A
  • Dropout Voltage: 340mV at 3A
  • Low Noise: 40µVRMS (10Hz to 100kHz)
  • 1mA Quiescent Current
  • Wide Input Voltage Range: 2.7V to 20V
  • No Protection Diodes Needed
  • Controlled Quiescent Current in Dropout
  • Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3.3V
  • Adjustable Output from 1.21V to 20V
  • <1µA Quiescent Current in Shutdown
  • Stable with 10µF Output Capacitor
  • Reverse Battery Protection
  • No Reverse Current
  • Thermal Limiting
  • Available in 5-Lead TO-220, DD and 16-Lead TSSOP Packages


  • 3.3V to 2.5V Logic Power Supply
  • Post Regulator for Switching Supplies

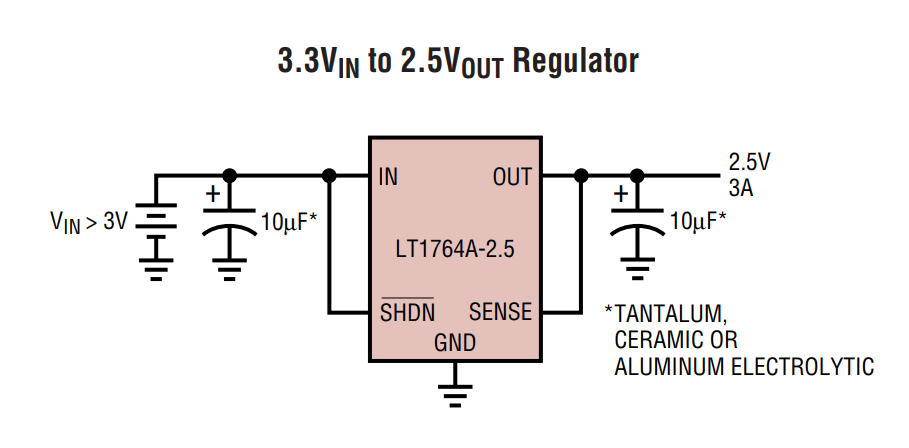

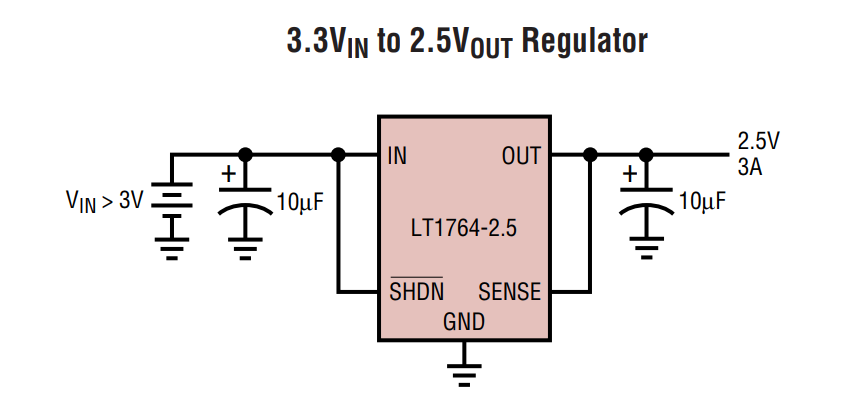

Typical Applications

Publicado: 2019-05-01 | Atualizado: 2022-03-11
