Analog Devices Inc. RadioVerse™
Analog Devices Inc. RadioVerse™ technology and design ecosystem accelerates time-to-market by providing integrated RF transceivers, software API, and design support packages. Get access to robust documentation, to ADI’s EngineerZone® online technical support community, and more. RadioVerse provides integrated wideband RF transceiver evaluation boards that connect to an FPGA development platform. This allows for chip-level performance evaluation and rapid prototyping of complete wireless scenarios using a single hardware platform. The boards are supported by a toolkit that includes HDL, Linux drivers, software API, a GUI, and design files necessary to kick-start designs.
RadioVerse offers a one-stop radio design environment focused on simplifying the radio development process for a wide range of markets and applications. Get the latest innovations to market fast by leveraging:
• Rapid Prototyping Platforms
• Chip-level Evaluation Systems
• Software Simulation Tools
• Development Toolkits with Software API
• Robust Documentation
• Training and Education
• Support Packages
Transceiver Technologies
Integrated wideband RF transceivers are system-on-chip radio solutions that replace as many as 20 high-performance discrete components and offer:
• Carrier-grade performance (zero IF and high linearity)
• Reduced Size, Weight, and Power (SWaP)
• Ease of use (complete API, on-chip tracking self-calibration)
• Versatile platform for multiple designs and standards
Wideband Solutions
RadioVerse SDR transceiver technologies offer several evaluation options, including prototyping platforms, full evaluation systems, software simulation tools, device drivers, and more.
Evaluation Software
This system is a software package consisting of a powerful Windows GUI, API source code, DLL, and Hardware Abstraction Layer (HAL). Additionally, the system includes a TCP/IP server to write in C#, MATLAB, LabView, and Python to interface the eval board. From there the system runs automated testing. The OS- and platform-independent API will integrate into the software, eliminating the need to write device-specific code.
Two download options are available. One option is the full package, including the GUI, HAL, DLL, API binary, etc. used with the evaluation hardware. The other option, intended to be integrated into a system, includes only API source code and the ARM firmware. Both are available via the download link.
Prototyping Software
This software package is available in binary and a publically-maintained source (in github, for complete transparency and revision control). It includes a powerful multi-platform GUI (Windows, Linux, OS X), HDL for Xilinx, and Altera SoC and fabric-only devices. Also provided is Linux kernel device driver code (in the Linux Industrial Input/Output [IIO] framework) and multi-platform (Windows, Linux, OS X) library support with multiple back ends (local, network, USB, etc.). In addition are multiple language/framework bindings (C, C++, C#, MATLAB, Simulink, Python, GNURadio) to interface to the eval board for waveform development and automated testing. Integrate any part of the prototyping platform (HDL, driver, or library) into systems with permissive licenses. The prototype is extensible to accept custom IP (physical layers, or full modems for end systems). The system includes a Board Support Package (BSP) for MathWorks HDL Workflow Advisor.
AD9361 & AD9364: AD-FMCOMMS3-EBZ User Guide (Wiki)

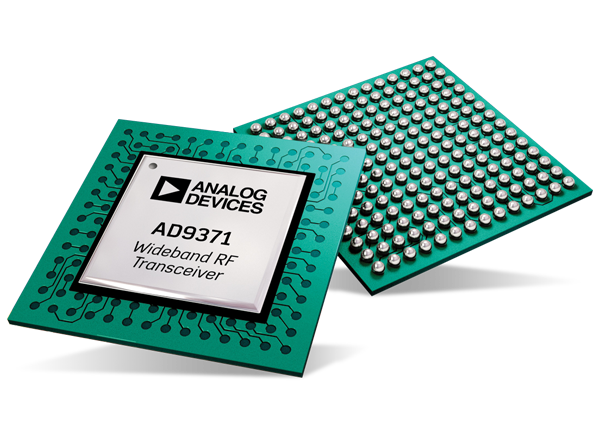

AD9371 & AD9375: Prototyping Platform User Guide (Wiki)
ADRV9008 & ADRV9009: Prototyping Platform User Guide (Wiki)
No O/S Software Driver
This software consists of generic device drivers purely written in generic/ANSI-C (compatible for most ANSI-C compilers that meet the iso9899:1990 specification) for a bare-metal, No-OS environment. These drivers can be ported to many different environments and run on many different types of processors, from generic 16-bit MCU to 64-bit processors. The No-OS drivers are designed to run on the Analog Devices HDL reference design but can also be run on processors that are either separated from the FPGA or integrated (hard or soft) in an SoC (FPGA + CPU) device. By using the No-OS drivers, writing device-specific code can be eliminated and directly integrated into end product software.
Market-Specific Technical Insights/ Support
From market trends in a range of industries to technology breakthroughs that have not yet reached the public, ADI continues to accumulate great insight that can be leveraged in the next design. Learn from others and hear from the industry expert.
• Customer Success Stories
• Analog Dialogue, Technical Magazine of ADI
• Reference Designs
• Technical Articles
• Sounds from the RadioVerse Blog Series
Products
Analog Devices Inc. ADF7024 Low Power, Sub GHz Transceiver IC
Easy-To-Use, Low Power, Sub GHz, ISM/SRD, FSK/GFSK, Transceiver IC.
Analog Devices Inc. ADF7030-1 Low-Power RF Transceivers
High Performance, Sub-GHz Radio Transceiver ICs.
Analog Devices Inc. RadioVerse™ ADRV9008-1 Wideband RF Receiver
Dual wideband receiver supporting 200MHz bandwidth from 75MHz to 6GHz frequency range.
Analog Devices Inc. RadioVerse™ ADRV9008-2 Wideband RF Transmitter
Dual RF Transmitter with Observation Receiver supporting 450MHz bandwidth from 75MHz to 6GHz.
Analog Devices Inc. RadioVerse™ ADRV9009 Wideband RF Transceiver
Single chip RF solution integrating Dual Transmitters, Dual Receivers, and an Observation Receiver.
Analog Devices Inc. AD936x RF Agile Transceivers
High performance transceivers designed for 3G and 4G base station applications.
Analog Devices Inc. ADRV9361-Z7035 SDR 2x2 System-On-Module
Combines the AD9361 RF Agile Transceiver™ with Xilinx Z7035 Zynq®-7000 All Programmable SoC.
Analog Devices Inc. ADRV9364-Z7020 SDR 1x1 System-On-Module
Combines the AD9364 RF Agile Transceiver™ with the Xilinx Z7020 Zynq®-7000 All Programmable SoC.
Analog Devices Inc. AD9375 Integrated Wideband RF Transceivers
Highly integrated, RF transceivers with digital pre-distortion algorithm & observation path.
Evaluation Boards
Analog Devices Inc. AD936x Transceivers Evaluation Tools
Designed to evaluate AD936x high performance and highly integrated transceivers.
Analog Devices Inc. ADRV9008/9 Eval Radio Card for RF Radio Solutions
Radio Cards designed to showcase the ADRV9008-1, ADRV9008-2, and ADRV9009.
Analog Devices Inc. ADALM-PLUTO Active Learning Module
Introduces the fundamentals of SDR, RF, and wireless communications to students.
Related Products
Deepwave Digital AIR7201 Artificial Intelligence Radio-Transceiver
High-performance SDR designed to be an edge-compute inference engine for deep learning algorithms.
Deepwave Digital AIR7101 Artificial Intelligence Radio-Transceiver
High-performance SDR seamlessly integrated with state-of-the-art deep learning hardware.
