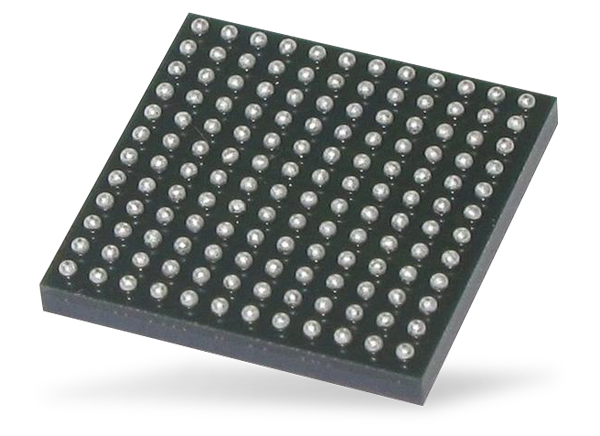

Analog Devices Inc. AD936x RF Agile Transceivers are high performance and highly integrated transceivers designed for use in 3G and 4G base station applications. These transceivers support Time Division Duplex (TDD) and Frequency Division Duplex (FDD) operation. The AD936x transceivers from Analog Devices provide superior receiver sensitivity with a noise figure of 3dB receive gain control. The programmability and wideband capability of these transceivers make them ideal for a broad range of transceiver applications.
Radiofrequency (RF) 2x2 transceiver with integrated 12-bit DACs and ADCs
Supports time division duplex (TDD) and frequency division duplex (FDD) operation
Tunable channel bandwidth (BW) of up to 20MHz
Superior receiver sensitivity with a noise figure of 3dB receive (Rx) gain control
Real-time monitor and control signals for manual gain independent Automatic Gain Control (AGC)
3G enterprise femtocell base stations
4G femtocell base stations
Wireless video transmission
Analog Devices Inc. AD936x Transceivers Evaluation Tools
Designed to evaluate AD936x high performance and highly integrated transceivers.
