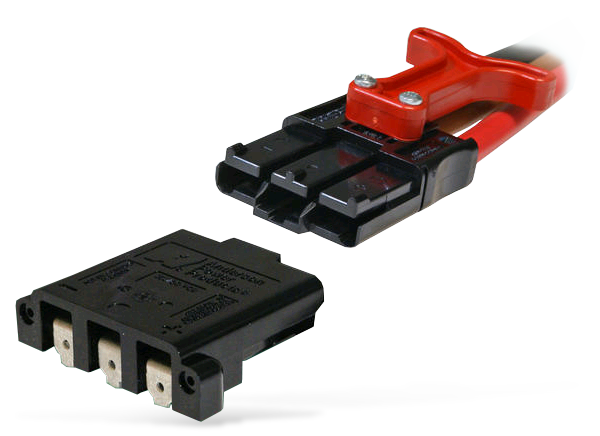

Anderson Power Products SBS® 75G Connectors
Anderson Power Products SBS® 75G Connectors are a new addition to the SBS® family. The SBS connector family features PCB-to-wire and wire-to-wire solutions for up to 110A with a touch-safe interface. APP SBS 75G 3-pole connectors feature a first-mate / last-break center position and are UL rated for ground or power. These products are available as a genderless wire housing or a right-angle PCB connector. Touch-safe protection is provided in all three positions by eliminating finger contact with live circuits.
Features
- Touch-safe interface
- Can safely be used in through panel applications
- Minimizes potential contact with live circuits
- Wire-to-wire and wire-to-board configurations for flexibility
- Ground or auxiliary contacts integrated into one-piece housing
Dimensions
Associated Solutions
Anderson Power Products E-Mobility Solutions
Designed to bring power, or power and signaling, to and from e-mobility equipment.
