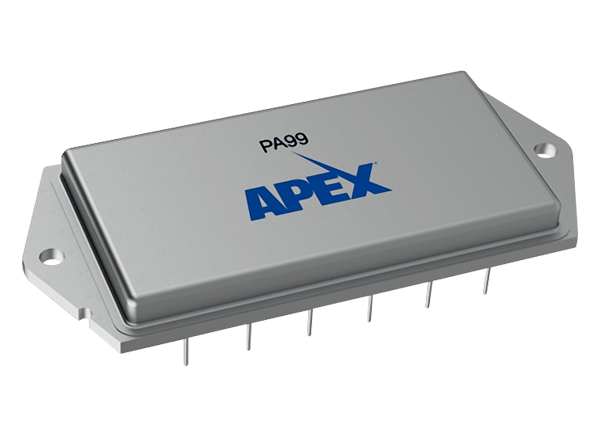

Apex Microtechnology PA99 Power Operational Amplifiers
Apex Microtechnology PA99 Power Operational Amplifiers (Op-Amps) are ultra-high 2500V power op-amps designed for output currents up to 50mA to target high voltage applications. These op-amps feature output voltage swing of up to up to 2400VP-P. The power amplifiers come with cascode input circuit configuration that assures high accuracy. The external compensation of the amplifiers provides user flexibility by allowing customers to tailor slew rate and bandwidth performance. These PA99 Op-Amps have resistor configurable current limit that provides system-level protection. Typical applications include semiconductor testing, piezo positioning, high voltage instrumentation, and electrostatic deflection.
Additional Resource
HS34 Heat SInk
The 134-HS34 is a board-level bolt-on heat sink for PA99 power amplifiers.
Features
- Cascode input circuit configuration that assures high accuracy
- External compensation of the amplifiers provides user flexibility by allowing customers to tailor slew rate and bandwidth performance
- Resistor configurable current limit that provides system-level protection
- Hermetically sealed package
- Temperature sensor
Specifications
- Up to 2400VP-P output
- ±100V to ±1250V wide supply range
- 50mA continuous output
- -40°C to 85°C operating temperature range
Applications
- High voltage cable testing
- High voltage component testing
- Electrophoresis
- Electrospinning
- Electrophotography
- High voltage DC supply
- Piezo drivers
- Semiconductor testing
- Piezo positioning
- High voltage instrumentation
- Electrostatic deflection
Typical Application Circuit Diagram
Associated Evaluation Kit
Apex Microtechnology EK36 Evaluation Kit
Provides a robust PCB with an ideal circuit layout and grounding to evaluate PA99 power op-amps.
Related Products
Apex Microtechnology Power Operational (Linear) Amplifiers
Portfolio of products designed for applications that require high current and high voltage.
