Artesyn Embedded Technologies LGA50D Digital DC/DC Converter Modules

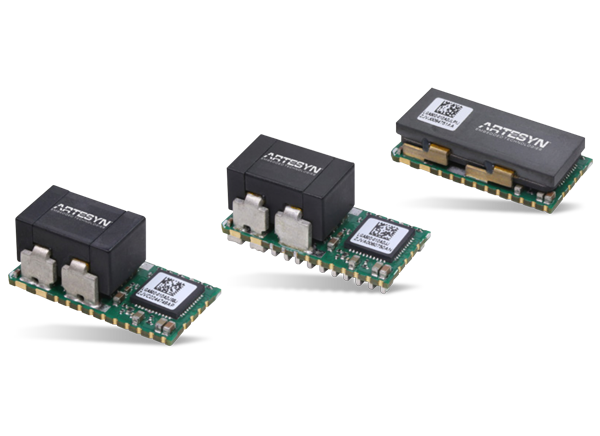

Artesyn Embedded Technologies LGA50D Digital DC/DC Converter Modules are 120W non-isolated converters with 50A single- or 25A dual-output capability in a compact size. Artesyn LGA50D DC/DC Converters feature an input of 7.5-14VDC with an output of 0.6-5VDC. The Artesyn series is designed to address a wide range of applications requiring low-voltage, high-current power rails, such as graphics and video processing, network, storage, and telecom equipment. The series includes three form/termination options: block pin, solder bump (surface mount), and low-profile packages.

Features

  • 120W maximum power
  • 7-14VDC input voltage
  • 0.6-5.2VDC output voltage
  • Two 25A outputs or single 50A output
  • Digital or analog control
  • -20°C to +85°C operating temperature range

Applications

  • Graphics, data, or video processing using high-power devices
    • Server processors
    • FPGAs
    • Supercomputers
    • Network
    • Storage
    • Telecom equipment

Configuration

Application Circuit Diagram - Artesyn Embedded Technologies LGA50D Digital DC/DC Converter Modules

Additional Resource

Videos
