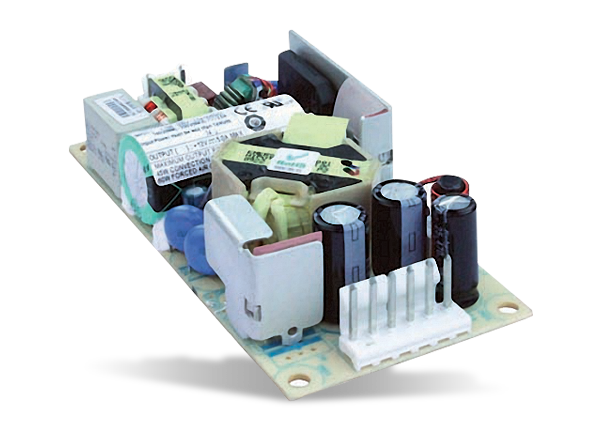

Artesyn Embedded Technologies NPS40-M 60W Single-Output Power Supplies

Artesyn Embedded Technologies NPS40W to 60W Single Output Power Supplies offer a compact 2" x 4" footprint with a height of 1" and protects against overload, overvoltage, and short circuit. The NPS40-M Series Power Supplies provide up to 45W of power with convection cooling and up to 60W with forced air cooling. The universal input power supply has a built-in EMI filter and offers high efficiency and many safety certifications.

Features

  • Medical and ITE Safety Approvals
  • Universal input
  • Less than 1U high
  • 2” x 4” footprint
  • Remote sense
  • Overload and short circuit protection
  • Adjustable output voltage
  • High efficiency
  • High MTBF
  • Built-in EMI filter (CISPR 22 Class B)
  • International Efficiency Level V, Energy Star 2.0 & CeC compliant (except NPS42-M)
  • Less than 300 mW no-load power consumption
  • 0°C to +80°C operation
  • Input power: <74W
  • Complies with EN61000-3-2
  • UL Class I approved
  • Dual AC fuses

Applications

  • Medical
  • Commercial

Specifications

  • 40W to 60W output power
  • 0.94A to 8A output current
  • 5VDC to 48VDC output voltage
  • 90VAC to 264VAC, 127VDC to 300VDC input voltage

Publicado: 2010-03-03 | Atualizado: 2022-03-11
