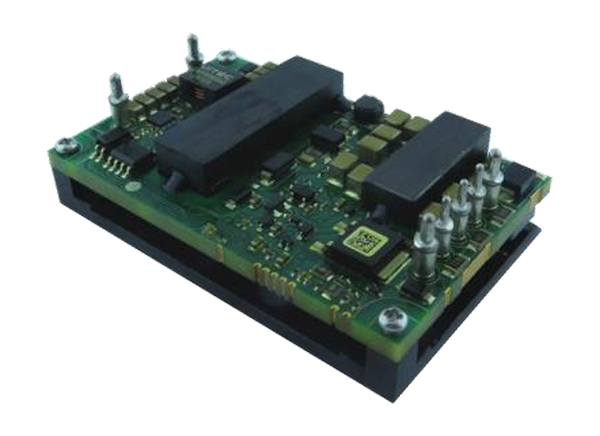

Bel Power Solutions 0RQB-50Y05x 50W Isolated DC-DC Converters
Bel Power Solutions 0RQB-50Y05x Isolated DC-DC Converters provide 50W of output power from a wide input range (24V, 48V, 72V, 96V, 110V typical). The quarter-brick converter provides 5V/5mA auxiliary supply, and when a large hold-up capacitor is added, the unit can still work up to 12ms when the input supply is interrupted. Bel Power Solutions 0RQB-50Y05x Series Isolated DC-DC Converters feature remote on/off, input undervoltage protection, output overvoltage protection, overcurrent, and short-circuit protection.
Features
- 24VDC, 48VDC, 72VDC, 96VDC, and 110VDC input / 5VDC at 10A output
- Reinforced isolation
- High efficiency
- Hold-up function
- Remote on/off
- Conformal coated for environmental ruggedness
- Input overvoltage lockout
- Input undervoltage protection
- Output overvoltage protection
- Overcurrent and short-circuit protection
- 5V auxiliary supply at primary side
- 24V, 48V, 72V, 96V, and 110V typical wide input range
- IEC/EN 62368-1 approved
- CSA/UL 62368-1 approved
- Class II, Category 2, isolated DC/DC converter (refer to IPC-9592B)
Applications
- Industrial
- Railways
