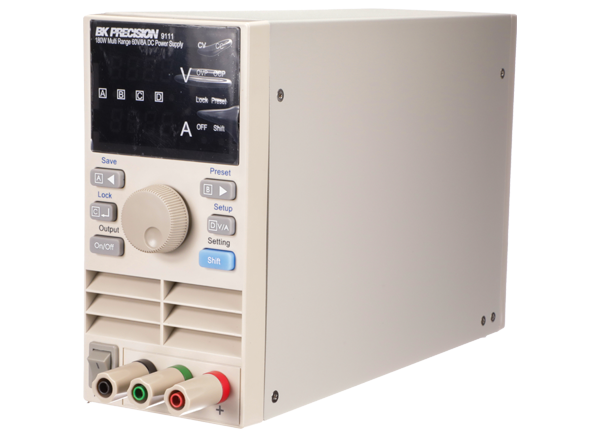

B&K Precision Model 9111 60V Multi-Range DC Power Supply
B&K Precision Model 9111 60V Multi-Range DC Power Supply is a 60V digitally controlled DC power supply. Instead of fixed output ratings, voltage and current limits are automatically recalculated for each setting. With expanded choices of volt/amp combinations, the Model 9111 component reduces the number of power supplies required and frees up valuable bench space.
Features
- Output rating up to 180W within 60V / 8A
- Digitally controlled, multi-ranging output
- 10mV / 1mA resolution over the full range
- Bright, easy to read display
- Very compact and lightweight
- Low ripple and noise
- OCP, OVP, and OTP protection
- Output On/Off control
- Store and Recall 4 x 100 groups of preset Volt/Amp values
- Temperature controlled, variable speed fan cooling
Specifications
- 0 to 60V output voltage
- 0 to 8A output current
- 180W maximum power
- 7.7lbs. (3.5kg) in weight
- 88mm x 175mm x 282mm (3.47" x 6.9" x 11.11") in dimension
- 1-year warranty
- Power cord and manual included
