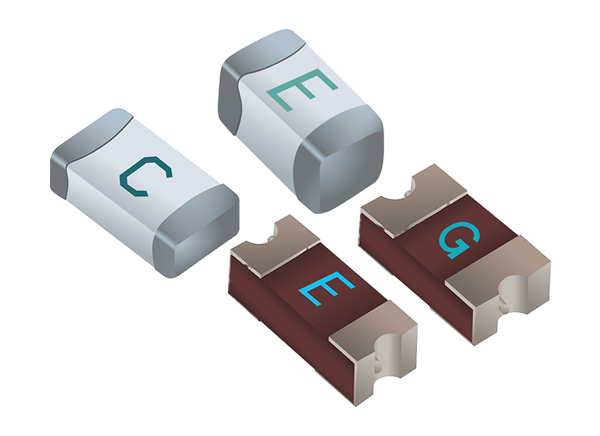

Bourns SinglFuse™ AEC-Q200 Compliant SMD Fuses

Bourns SF-0603HIA-M, SF-0603SA-M, SF-1206HIA-M, SF-1206SA-M, SF-1206SA-W, SF-2410FPA-W, and SF-2410FA-W SinglFuse™ AEC-Q200 Compliant Surface-Mount (SMD) Fuses are automotive-grade fast-acting, slow-blow, and high inrush withstand fuses. The series is UL 248 listed, RoHS compliant, and halogen free. These fuses meet the Bourns AEC-Q200 equivalent test plan, with more severe test conditions and large sample sizes that ensure robustness in certain harsh environments. AEC-Q200 Compliant SinglFuse Fuses are designed for use in a variety of industrial, medical (low to medium risk), telecom, and battery management systems applications.

Features

Fast-acting, slow-blow, and high inrush withstand
0603, 1206, and 2410
AEC-Q200 compliant

UL 248-14 listed
RoHS compliant and halogen free

Applications

Industrial
Medical (low to medium risk)

Telecom
Battery management systems

Specifications

Rated current
- 0.5A to 5A (SF-1206SA-M)
- 0.5A to 6A (SF-1206HIA-M)
- 0.5A to 8A (SF-0603SA-M)
- 1A to 5A (SF-0603HIA-M)
- 1A to 10A (SF-2410FPA-W)
- 1.5A to 15A (SF-1206SA-W)
- 12A to 20A (SF-2410FA-W)
Rated voltage
- 24V_DC to 65V_DC (SF-0603SA-M and SF-1206HIA-M)
- 32V_DC (SF-0603HIA-M)
- 32V_DC to 110V_DC (SF-1206SA-W)
- 35V_DC (SF-1206SA-M)
- 65V_DC (SF-2410FA-W)
- 125V_DC to 250V_DC (SF-2410FPA-W)

Fuse type
- Slow blow (SF-0603SA-M, SF-1206SA-M, SF-1206SA-W)
- Fast-acting precision (SF-2410FPA-W)
- Fast-acting (SF-2410FA-W)
- High inrush withstand (SF-0603HIA-M, SF-1206HIA-M)
