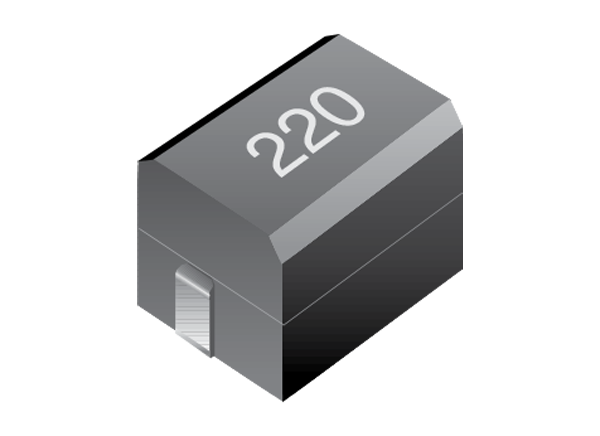

Bourns CC453232A AEC-Q200-Compliant Chip Inductors

Bourns CC453232A AEC-Q200-Compliant Chip Inductors are wound on a ferrite core that provides low DC resistance and high rated current. The series features an encapsulation construction, which allows the inductors to retain high resistance to heat, humidity, mechanical shock, and pressure. The inductors comply with the AEC-Q200 standard and operate over a -40°C to +150°C temperature range. Bourns CC453232A AEC-Q200-Compliant Chip Inductors are ideal for use in RF signal processing, resonant circuits, filters, and low power management applications. These applications include cable modems, set-top boxes, cell phones, and other mobile electronics.


  • High rated current
  • High resistance to heat and humidity
  • Resistant to mechanical shock and pressure
  • Tight dimension tolerances for automatic placement
  • AEC-Q200 compliant
  • RoHS compliant


  • RF signal processing
  • Resonant circuits and filters for cable modems
  • Set-top boxes
  • Cell phones
  • Tablets
  • Mobile electronic devices


  • 1μH to 1000μH inductance
  • 2MHz to 180MHz self-resonant frequency
  • 0.09A to 2.3A rated current
  • -40°C to +150°C operating temperature range
  • 4.5mm x 3.2mm x 3.2mm dimensions
