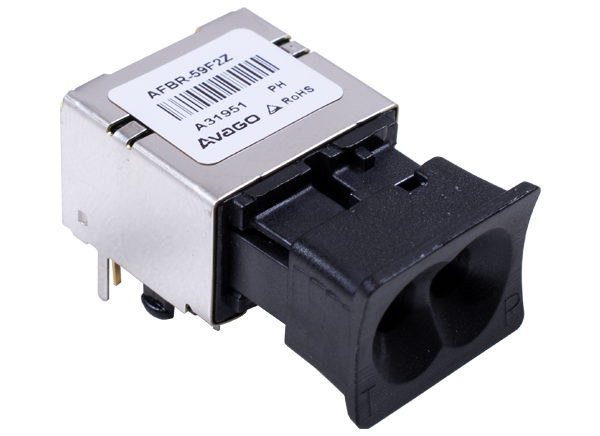

Broadcom AFBR-59FxZ Compact 650nm Transceivers have the ability to implement Fast Ethernet (100Mbps) communications over 2.2mm jacketed standard Polymer Optical Fiber (POF). Their innovative bare fiber locking mechanism allows for the connection of POF cable with a simple insert and lock system eliminating the need for connectors. This facilitates fast installation and maintenance.
Easy bare fiber termination solution for 2.2mm jacket POF
EMI/ EMC robust
(AFBR-59F1Z) up to 40m POF (NA= 0.5) or 60m POF (NA= 0.3).
(AFBR-59F2Z) up to 40m POF
(AFBR-59F3Z) up to 50m for 1Gbps transmission with 1mm core diameter POF (attenuation smaller than 0.19dB/m and NA= 0.5)
Compatible with IEEE 802.3u Fast Ethernet data communications standard
LVPECL interface compatible
Operating temp. range -40°C to 85°C
3.3V power supply operation
Integrated optics to efficiently focus light for fiber coupling
