Eaton MCLA / WCLA AEC-Q200 Chip Inductors

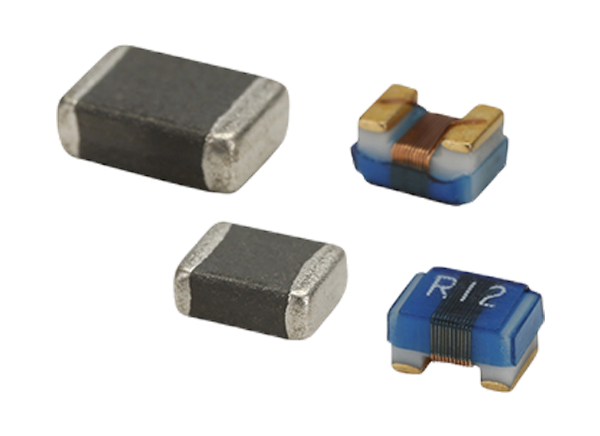

Eaton MCLA Automotive-Grade Multilayer Chip Inductors and WCLA Automotive-Grade Wirewound Chip Inductors are AEC-Q200 qualified and designed for infotainment, wireless communications, and other automotive applications. The multilayer monolithic construction of the MCLA inductors yields high reliability. WCLA inductors offer tight inductance tolerance and a High Q value. These Eaton automotive chip inductors come in a variety of package sizes and inductance ranges. They operate over a -40°C to +125°C temperature range.
Features
- Inductance range
- MCLA
- 0.047µH to 12µH (MCLA2012V1, MCLA3216V1)
- 0.047µH to 3.9µH (MCLA1608V1)
- 1.0nH to 470nH (MCLA1608V2)
- 1.0nH to 33nH (MCLA1005V2)
- WCLA
- 2.2nH to 2200nH (WCLA2012V1)
- 1.6nH to 470nH (WCLA1608V1)
- 1.0nH to 120nH (WCLA1005V1)
- MCLA
- Package
- 1206 (3216 metric) - MCLA
- 0805 (2012 metric) - MCLA/WCLA
- 0603 (1608 metric) - MCLA/WCLA
- 0402 (1005 metric) - MCLA/WCLA
- AEC-Q200 qualified
- Moisture sensitivity level (MSL) 1
- Multilayer monolithic construction yields high reliability (MCLA)
- High Q value and tight inductance tolerance (WCLA)
- -40°C to +125°C operating temperature range
Applications
- Advanced Driver Assistance Systems
- Infotainment
- Wireless communications
- Wi-Fi®, BLUETOOTH®, satellite
- Antenna tuning
- On-board computers
Schematic
