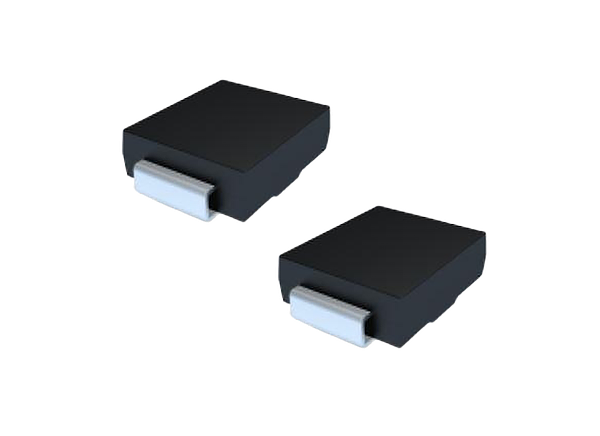

Eaton SMDJxxH Automotive TVS Diodes are AEC-Q101 qualified and offer a peak power rating of 3000W at 34.4A to 150.8A current range. These diodes feature low inductance, low leakage current, and excellent voltage clamping capability. The SMDJxxH diodes leverage a V-Groove interlock and dimple design that offers high reliability. These TVS diodes are available in a broad range of footprints designed with the DO-214AB package. The SMDJxxH diodes operate from 12V to 54V voltage range and -55°C to 150°C temperature range. Typical applications include networking systems and body electronics, ADAS and safety systems, automotive lighting, and battery management systems.
3000W peak power rating
34.4A to 150.8A peak current range
Low leakage current
Excellent voltage clamping capability
12V to 54V reverse standoff voltage range
-55°C to 150°C temperature range
Communication and infotainment systems
Networking systems and body electronics
Advanced Driver Assistance Systems (ADAS) and safety systems
Battery management systems
