Intel Stratix® 10 MX FPGA Development Kit delivers a complete design environment for the Stratix 10 MX FPGAs. This kit includes all hardware and software users need to take advantage of the performance and capabilities of Stratix 10 MX FPGAs. This kit allows users to develop and test PCI Express® (PCIe®) 3.0 designs using the PCI-SIG®-compliant development board. The user can also develop and test memory subsystems with High Bandwidth Memory (HBM) and DDR4 (DIMM, HiLo, components).

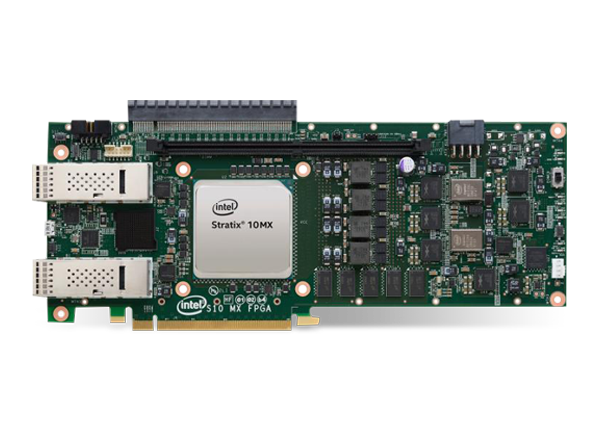

Stratix 10 MX FPGA development board with a Stratix 10 MX FPGA
Onboard DDR4 (8GB)
One DDR4 DIMM daughter card and HiLo daughter card
Two quad small-form-factor pluggable (QSFP28) cages
PCIe Gen3x16 (Root Port and End Port)
AC adapter power and USB cables
Board update portal design
Board Test System (BTS) design
Stratix 10 MX FPGA Development Kit user guide
Board design files
Quartus Prime Pro software (required)
