JAE Electronics MA01 Automotive Board to Board Connectors

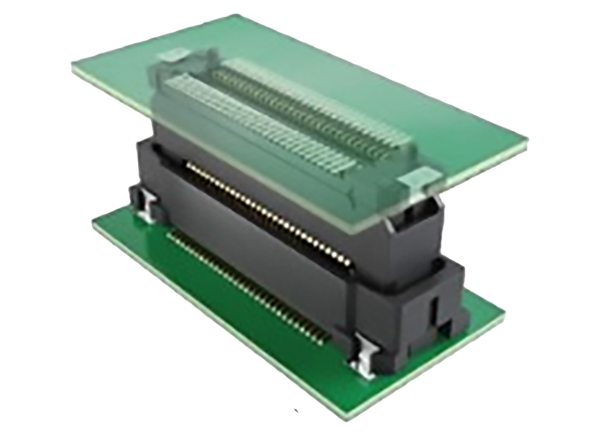

JAE Electronics MA01 Automotive connectors are high-speed, board-to-board connectors. High reliability is achieved through a two-point contact structure, enabling low insertion/removal forces, as well as high-speed transmissions exceeding 8Gbps. These board-to-board connectors feature configurations between 30 and 140 contacts and stacking heights ranging from 8 to 30mm. JAE Electronics MA01 Automotive connectors feature keyed contacts to prevent mismating, and .5mm tolerances, allowing the use of multiple connectors on the same board.
Features
- Two-point contact structure for enhanced contact reliability
- Low insertion and removal forces through roll surface contact structure
- Supports automatic mounting
- Allows for multiple connectors to be used on a single board
- Keyed to prevent mismating
Applications
- On-board equipment
- FA equipment
- Semiconductor manufacturing equipment
- Office machines
- Communication equipment
- Measuring equipment
- Broadcasting equipment
Specifications
- 0.635mm contact pitch
- 0.5A rated current
- ±0.5mm floating tolerance in both X and Y directions
- ±0.5mm stacking height Z-axis tolerance between boards
- -40°C to +125°C operating temperature
- 8 Gbps+ high-speed transmission (10GBASE-KR and PCIe Gen3 equivalent)
