KYOCERA AVX FFC & FPC Connectors

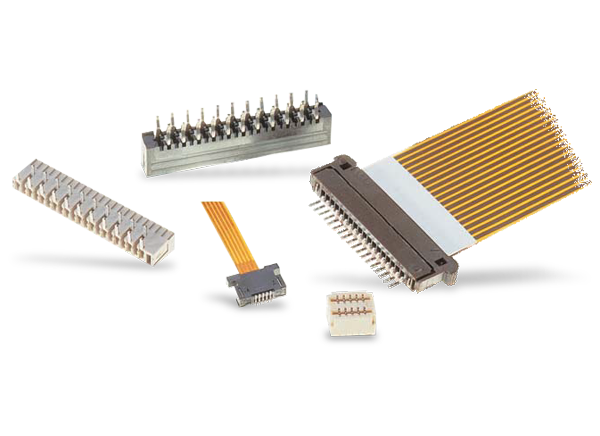

KYOCERA AVX Flexible Flat Cables (FFC) / Flexible Printed Circuits (FPC) Connectors are available in a broad range of products that include space-saving, easy-to-use flip-top style connectors with a pitch range from 0.2mm to 1.25mm, slide ZIF, and cost-effective LIF connectors. In addition to signal integrity, these connectors can provide increased retention force for high-vibration environments, low-profile heights for small packages, ISO/TS 16949-certified connectors for automotive applications, increased workability in assembly ground planes for high-speed data transfer, and a high current threshold for battery applications. KYOCERA AVX FFC/FPC Connectors are available in multiple pitch sizes and remain competitive in the market, to offer the most solutions.
0.3mm Pitch FFC/FPC Connectors
KYOCERA AVX 6281 0.3mm-Pitch FFC/FPC Connectors
Bottom contact, ZIF, flip-top style connectors with 0.3mm pitch and 1.25mm height.
KYOCERA AVX 6293 Series 0.3mm Pitch FPC Connectors
0.85mm height, 3.7mm width with actuator for strong retention strength.
KYOCERA AVX 6296 0.3mm Pitch FFC/FPC Connectors
Low-profile, space-saving type FPC connectors designed for portable equipment requiring downsizing.
KYOCERA AVX 6841 Series 0.3mm Pitch FPC Connectors
ZIF, vertical, slide-lock type with 3.6mm x 2.95mm width featuring a temporarily holding structure.
KYOCERA AVX 6844 Series 0.3mm pitch FPC Connectors
Light & compact with 0.95mm height x 2.7mm width with accurate positioning for secure mating.
0.5mm Pitch FFC/FPC Connectors
KYOCERA AVX 6210 / 6212 / 6260 / 6262 0.5mm-Pitch Connectors
ZIF, SMT, & FPC/FFC styles with slide locks, enabling a secure connection with flexible cables.
KYOCERA AVX 6214 Series 0.5mm Pitch FFC/FPC Connectors
ZIF, FFC/FPC, vertical, SMT type, features slide locks and a total height of 4.1mm.
KYOCERA AVX 6239 Series 0.5mm Pitch FFC/FPC Connectors
Low-profile ZIF, right-angle, SMT, front-lock type FPC/FFC connectors with 5 to 30 positions.
KYOCERA AVX 6240 Series 0.5mm Pitch FFC/FPC Connectors
Low-profile and space-saving connectors with a height of 2.0mm on the board and width of 2.7mm.
KYOCERA AVX 6244 Series 0.5mm Pitch FPC/FFC Connectors
LIF, vertical SMT type connectors designed for automatic mounting machines.
KYOCERA AVX 6251 Series 0.5mm Pitch FFC/FPC Connectors
Suitable for applications requiring high contact reliability under harsh environments.
KYOCERA AVX 6277 Series 0.5mm Pitch FFC/FPC Connectors
0.9mm height with back-lock actuators and rear locking for easy connection and disconnection.
KYOCERA AVX 6288 Series 0.5mm Pitch FFC/FPC Connectors
Bottom contact, right angle, SMT, ZIF with design to prevent displacement of contacts.
KYOCERA AVX 6298 Series 0.5mm Pitch FFC/FPC Connectors
ZIF, right angle, SMT, back-lock connectors with bottom contacts and 0.9mm height.
KYOCERA AVX 6299 Series 0.5mm FFC/FPC Connectors
ZIF, SMT type with small footprints and 0.9mm height with front-lock type actuators.
KYOCERA AVX 6808 Series 0.5mm Pitch FFC/FPC Connector
1.5mm height, right-angle connector with dual-sided top and bottom contacts.
1.0mm Pitch FFC/FPC Connectors
KYOCERA AVX 6200/6224 Series 1.0mm Pitch FFC/FPC Connectors
2.9mm height available in SMT with boss, SMT with metal tabs, or SMT with boss and metal tabs.
KYOCERA AVX 6208 Series 1.0mm Pitch FFC/FPC Connectors
ZIF, vertical connectors available in SMT and through-hole types with -40° to +85°C operating temp.
KYOCERA AVX 6226 Series 1.0mm Pitch FPC/FFC Connectors
3.5mm tall LIF, vertical SMT type connectors with tuning fork style contacts.
KYOCERA AVX 6227 Series 1.0mm Pitch FFC/FPC Connectors
LIF, right-angle, SMT type connectors with tuning for style, dual-sided contacts, and 2.0mm height.
KYOCERA AVX 6232 Series 1.0mm Pitch FFC/FPC Connectors
LIF, SMT / through-hole type connectors with bottom or bottom and top contacts available.
