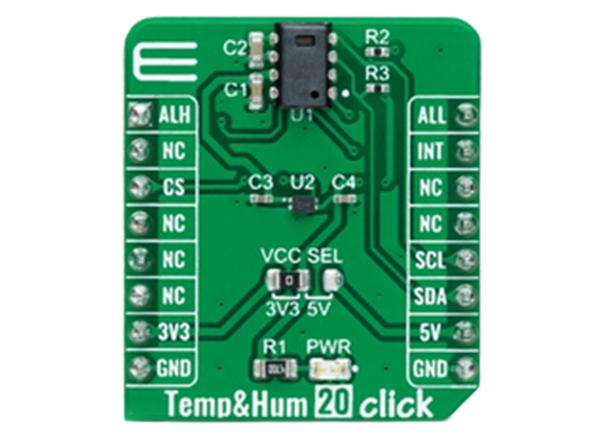

Mikroe Temp & Hum 20 Click

Mikroe Temp & Hum 20 Click features the Amphenol CC2D23 highly accurate, fully-calibrated relative humidity and temperature sensor. The sensor has high accuracy (±2% from 20% to 80%RH (±3% over entire humidity range)) and high resolution. It provides factory-calibrated 14-bit data to the host controller with a configurable I²C interface. It also comes with alarm features for preset control at a minimum and maximum humidity.

Features

On-board modules
- Amphenol CC2D23 highly accurate, fully-calibrated relative humidity and temperature sensor
Low power consumption
Fully-calibrated and temperature-compensated
High precision and accuracy
I²C interface with alarm functions

Reliable in harsh environments
I²C interface
mikroBUS compatibility
S (28.6mm x 25.4mm) click board size
3.3V or 5V input voltage

Applications

Various temperature and humidity-related applications and a vast number of applications ranging from portable devices to products designed for harsh environments
