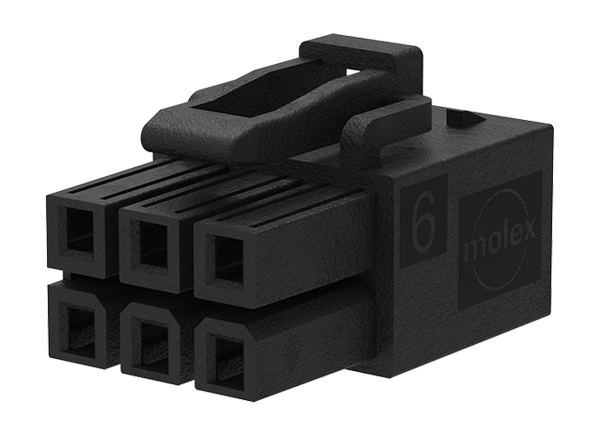

Molex Mini-Fit Max Connectors

Molex Mini-Fit Max Connectors provide a 20.5A current in a compact package and feature a robust tangless terminal design with a TPA-capable receptacle. These design features help ensure the terminals are fully seated in their housing and provide safety for the terminals during packing and assembly insertion. Molex Mini-Fit Max Connectors are ideal for use in a variety of telecommunications/networking, industrial, home appliance, and commercial vehicle applications.

Features

UL 94V-0 Glow Wire combination resin
Keying and polarization help prevent mismating
End-to-end stackable, delivering more power per linear inch and square millimeter than other mid-range power connectors
Four independent points of contact

TPA stop helps ensure terminals are fully seated in their housing to reduce terminal backout
Tangless terminals provide safety for the terminals during packing and assembly insertion
Slim profile design saves PCB space

Applications

Telecommunications/networking
- Switches
- Servers
- Power supplies and distribution
- Network towers
Industrial
- Machinery
- Commercial equipment
- Commercial lighting
- Industrial HVAC systems

Home appliances
- Heaters and air conditioners
- Washers and dryers
Commercial vehicles
- Power converters
- Unsealed electronic control modules
- Transportation trucks
