Silicon Labs AMWx06 Numbat WICED Wi-Fi Networking Modules

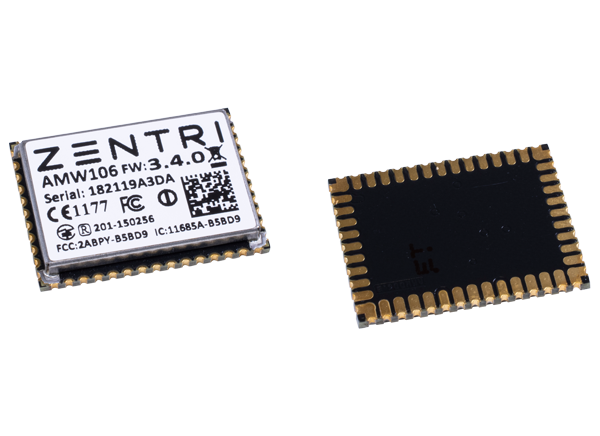

Silicon Labs AMWx06 Numbat WICED Wi-Fi Networking Modules from Silicon Labs combine a microcontroller with a BCM43362 Wi-Fi device. This provides an advanced stand-alone Wi-Fi and networking solution. An integrated module avoids difficult RF layout and allows for quickly embedding Wi-Fi and secure networking functionality into virtually any device. The Silicon Labs WiConnect serial-to-Wi-Fi application is pre-programmed into all modules. It fast-tracks module integration into end-products. The module is suitable for integration into most embedded applications with dimensions of just 20.3x15.2mm and a wide temperature range.
The Wi-Fi device from Broadcom includes an integrated RF transmit power amplifier and provides superior Wi-Fi performance and full compatibility with all 2.4GHz 802.11b/g/n Wi-Fi networks. Connections for two external antennas provide applications with maximum radio range and mechanical design flexibility.
Features
- Self-contained ultra-low power Wi-Fi module with microcontroller and secure TCP network stack
- Integrated SPI-serial flash for software upgrades and user-accessible read/write file system
- WiFi
- Broadcom single-band 2.4GHz IEEE 802.11b/g/n 1x1 Wi-Fi transceiver
- Includes support for all Wi-Fi security modes including Open, WEP, WPA, and WPA2-PSK
Specifications
- Microprocessor
- ARM Cortex® M4 based microprocessor
- AMW006: operates up to 84MHz core frequency
- AMW106: operates up to 100MHz core frequency
- RAM
- AMW006: 96KB
- AMW106: 128KB
- Interfaces
- UART: 2x4 wire up to 10.5Mbit/s
- SPI: SPI-Master (42Mbit/s), SPI-Slave (21Mbit/s)
- GPIO: Up to 21 GPIOs (overlaid with peripherals)
- A/D converter: 9 channel input, 12-bit resolution, 2.4MSPS sampling in single-shot or scan mode
- PWM: Up to 14 PWM outputs
- Wake-up: Wake pin for ultra-low power operation
- Two external antennas for diversity and improved range
- Operational & Radio
- Single operating voltage: 3.3V (typical)
- All I/O pins are +5V tolerant
- Operational Temperature Range: -30°C to +85°C
- Size: 20.3x15.2x2.7mm (0.80x0.60x 0.11")
- Weight: 0.07oz (2g)
- Current consumption @ 3.3V, 25°C
- VBAT: 0.97μA (with 32k RTC)
- Standby: 2.8μA (3.8uA with 32k RTC)
- Stop: 10μA with RAM retention (113μs wake)
- Wi-Fi Powersave: 0.77mA (DTIM = 3)
- Active receive: 5.7mA @ 1Mbit/s UDP
- Active transmit: 11.4mA @ 1Mbit/s UDP
- Maximum RF transmit power
- 802.11b/g: +18dBm
- 802.11n: +14dBm
- Minimum Receive sensitivity
- 802.11b/g: -94dBm
- 802.11n: -86dBm
- Sustained TCP throughput: 10Mbit/s
Applications
- Industrial, M2M, and Home Automation
- Environmental monitoring
- Energy monitoring
- Wireless sensing, remote data logging
- HVAC, power, light, & thermostat control
- Appliance control
- Security
- Cameras, Doors/Window monitoring
- Alarms, Smoke Detectors
- Door and entry control
- Health & Fitness
- Fitness Equipment
- Home health monitoring e.g. weight scales
- Consumer
- Audio, Toys, Robots
