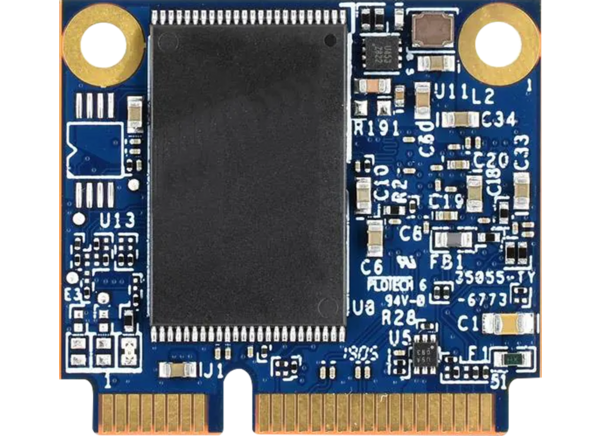

Apacer Technology Inc. SH250-300B Serial ATA Flash Drives

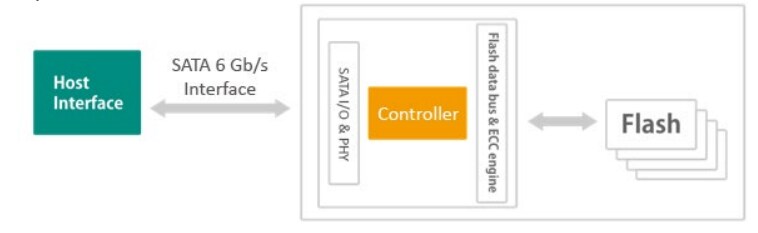

Apacer Technology Inc. SH250-300B Serial ATA Flash Drives are designed in SATA 6Gb/s interface and deliver excellent read/write speed. These flash drives are built with a powerful SATA controller that supports on-the-module ECC and an efficient wear-leveling scheme. The SH250-300B flash drives are implemented with Low-Density Parity Check (LDPC) ECC engine to extend SSD endurance and increase data reliability. These flash drives are equipped with a built-in thermal sensor to monitor the temperature of the SSD via S.M.A.R.T commands to prevent overheating. End-to-end data protection ensures data integrity at multiple points in the path to enable reliable delivery of data transfers. The SH250-300B flash drives come with various implementations, including power saving modes, wear leveling, flash block management, TRIM, DataDefender™, and SMART Read Refresh™. These ATA flash drives are ideal for industrial, imaging, computing, and enterprise markets.

Features

Flash management:
- Low-Density Parity-Check (LDPC) code
- Global wear leveling
- Flash bad-block management
- Page mapping flash translation layer
- S.M.A.R.T.
- DataDefenderTM
- Device Sleep
- ATA Secure Erase
- TRIM
- SMART Read RefreshTM
- SLC-liteX (P/E cycle: 100K)
3D TLC (BiCS5) NAND flash type
Compliance with SATA Revision 3.2:
- SATA 6Gb/s interface
- ATA-8 command set
- Backward compatible with SATA 1.5/3Gb/s

SATA power management modes
52-pin mSATA connector type
Security:
- AES 256-bit hardware encryption
Reliability:
- Thermal sensor
- End-to-end data protection
- LED indicators for drive behavior
RoHS recast compliant (complies with 2011/65/EU standard)

Specifications

Capacity:
- 40GB, 80GB, 160GB, and 320GB
Performance:
- Burst read/write: 600MB/sec
- Up to 550MB/sec sequential read
- Up to 485MB/sec sequential write
- Up to 55,000IOPS random read (4K)
- Up to 63,000IOPS random write (4K)
>3,000,000hours MTBF
Endurance (in Drive Writes Per Day: DWPD):
- 40GB: 49.54DWPD
- 80GB: 49.95DWPD
- 160GB: 47.91DWPD
- 320GB: 42.35DWPD

Temperature range:
- Operating:
  - Standard: 0°C to 70°C
  - Wide: -40°C to 85°C
  - Storage: -55°C to 100°C
3.3V ±5% supply voltage
Power consumption:
- Active mode (maximum): 410mA
- Idle mode: 60mA

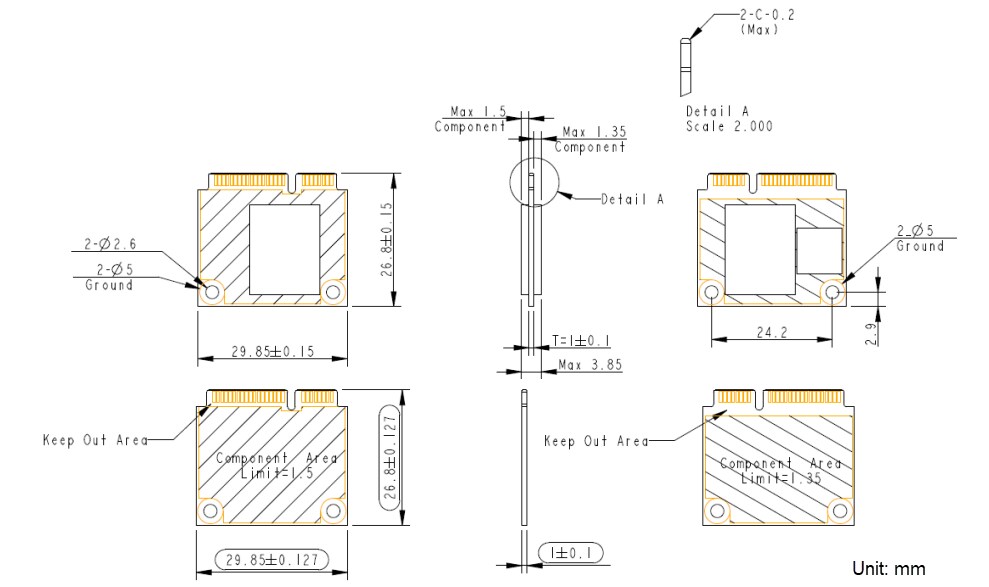

Form factor:
- mSATA mini and JEDEC MO-300B
- 26.80mm x 29.85mm x 3.85mm
- Net weight: 3.66g ±5%
