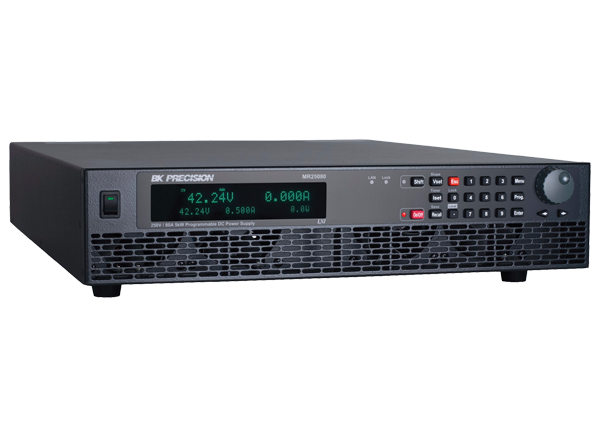

B&K Precision MR Multi-Range Programmable DC Power Supplies

B&K Precision MR 5kW Multi-Range Programmable DC Power Supplies include 250V, 500V, and 1kV models that produce 3kW to 5kW of clean output power in a compact 2U form factor. The MR 5kW Multi-Range Programmable DC Power Supplies are ideal for bench use and automated test system applications. This series offers an intuitive user interface for benchtop applications that allow list-mode programming, slew rate adjustments, and a Solar-array simulator (SAS) function to generate I-V curves directly from the front panel. The optional SAS software allows users to simulate various weather conditions and consistently reproduce I-V curves while monitoring maximum power point tracking (MPPT) efficiency data.

The MR power supplies also provide operating software for test-sequence generation and data logging without the need for writing source code. Integrators will benefit from fast command response times, excellent regulation, and low-noise characteristics. This series supports USB, GPIB, LXI-compliant LAN, and analog interfaces for remote control and programming. Users can daisy-chain and control up to 30 power supplies from one PC, or multiple power supplies can be connected in parallel for increased output power.

Features

Multi-ranging operation, capable of replacing multiple fixed range power supplies
Compact 2U form factor
Standard USB (USBTMC-compliant), RS232, GPIB, and LXI-compliant LAN interfaces
Galvanically isolated analog control and monitoring interface
Protection features
- Overvoltage protection
- Overcurrent protection
- Overpower protection
- Overtemperature protection
- Foldback protection mode
- Key-lock function

Adjustable voltage and current slope (rise and fall time)
List mode with 10 user-defined setups with up to 100 programmable steps each
Built-in Solar-Array Simulation (SAS) function for storage of up to 101 I-V curves with V_OC, I_SC, V_MP, I_MP, parameters, and 4096-point table
Remote sense to compensate for voltage drop
Master / slave mode operation provides up to 50kW with 10 units connected in parallel
Controls up to 30 power supplies from one PC
Soft panel software for remote control, test sequence generation, and data logging included
cTUVus certification mark fulfills CSA and UL safety standards
