Bourns Multifuse® PTC Resettable Fuses

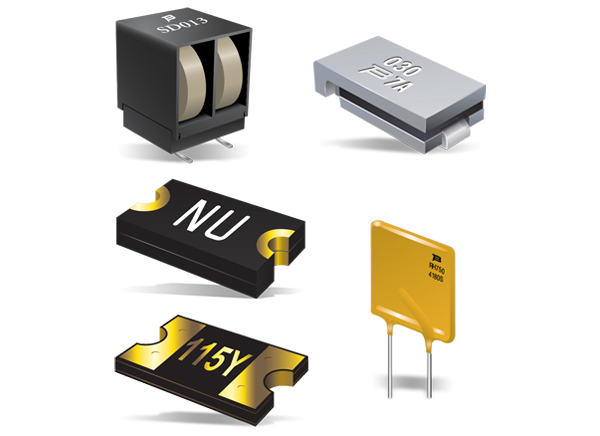

Bourns Multifuse® PTC Resettable Fuses are available in polymer or ceramic with surface-mount, through-hole, or strap-mount configurations. The materials used in these fuses allow them to reset after a fault condition has been removed, and the increase in resistance changes exponentially rather than in a linear manner. Resettable overcurrent protection offers reliability and a longer part life. Bourns Multifuse PTCs provide resettable overcurrent protection, extra-low resistance, and are RoHS compliant. These fuses are ideal circuit protection for a variety of industrial and consumer applications, including computer, battery, automotive, and telecommunications.
SMT Hi-Current / Low Res. PTCs
Bourns MF-NSML/X PPTC Resettable Fuses
Available in small footprint size and low profile for space-constrained mobile applications.
Bourns MF-USML/X Low Ohmic PPTC Resettable Fuses
Higher hold currents, higher voltages, improved resistance stability, and a smaller footprint.
Bourns MF-GSMF PPTC Resettable Fuses
Small SMT resettable fuses with high voltage (36VDC) and hold current (3.0A) ratings.
Bourns MF-ASML/X Low-Resistance PPTC Fuses
Tiny 0402 footprint size that protects against overcurrent and overtemperature events.
SMT Hi-Temp PTCs
Bourns MF-FSHT PTC Resettable Fuses
12V voltage rating, up to 40A current rating, and 0603 footprint size with low profile design.
Bourns MF-USHT Multifuse® PTC Resettable Fuses
Designed for automotive applications and features a small footprint (1210).
Bourns MF-NSHT Multifuse® PTC Resettable Fuses
Designed for automotive applications with an operating temperature range up to +125°C.
Bourns MF-PSHT Multifuse® PTC Resettable Fuse
Features Free Xpansion Design™ to increase performance with higher voltages & hold currents.
Through-Hole PTCs
Bourns MF-R Multifuse® PTC Resettable Fuses
Provides load protection almost anywhere there is a low-voltage power supply.
Bourns MF-RG Multifuse® PPTC Resettable Fuses
Circuit protection fuses for the automotive, data server, and industrial electronics industries.
Bourns MF-RHT Multifuse® PTC Resettable Fuses
Provides overcurrent surge protection of electronic equipment in high operating temperature ranges.
Bourns MF-RM Multifuse® PTC Resettable Fuses
Resettable fuses capable of operating on an AC mains circuit up to 240Vac.
MF-R/90 PTC Resettable Fuses - Ideal for almost anywhere there is a load to be protected with a voltage supply of up to 90V.
MF-RX PTC Resettable Fuses - Cured, flame-retardant epoxy polymer insulating material meets UL 94V-0 requirements.
MF-RX/250 PTC Resettable Fuses - Radial leaded, fast tripping, and suitable for CPE, CO, & access equipment.
MF-RX/72 PTC Resettable Fuses - 72V radial-leaded device ideal for security & fire alarm systems, loudspeakers, & power transformers.
Other Multifuse PTCs
Bourns MF-MSHT PTC Resettable Fuses
AEC-Q200 compliant, features a 9V to 42V voltage range and up to 1.75A current rating.
Bourns MF-PSML Multifuse® PTC Resettable Fuses
Low ohmic (3mΩ initial resistance) resettable fuses in a small 0805 surface-mount package.
Bourns MF-USML PPTC Resettable Fuses
1.75A to 7A operating current, resistance as low as 13.5mΩ, and initial resistance as low as 1mΩ.
Bourns MF-LSMF Multifuse® PTC Resettable Fuses
Offers power ratings up to 33Vmax, low profile & surface-mount packaging for automated assembly.
Bourns MF-MSMF Multifuse® PTC Resettable Fuses
100% electrically compatible with all previous generations of 1812 SMT devices.
Bourns MF-PSMF Multifuse® PTC Resettable Fuses
Compact 0805 package provides a fast reaction time to short circuit & overcurrent conditions.
Bourns MF-SD/250 Telecom PTC Resettable Fuses
Surface-mount package with twin 250V polymer fuses to save space.
Bourns MF-FSMLX PTC Resettable Fuses
80mΩ max resistance rating, a 0.3 to 3AIhold current range, and 6V or 8V max voltage options.
Bourns MF-NSMF Multifuse® AEC-Q200 PTC Resettable Fuses
AEC-Q200 and RoHS compliant with a small size that results in fast time to react to fault events.
Bourns MF-USMF Multifuse® AEC-Q200 PTC Resettable Fuses
AEC-Q200 and RoHS compliant and provides fast tripping resettable circuit protection.
MF-FSMF PTC Resettable Fuses - 0603 footprint with 6VDC to 15VDC Vmax for USB port protection, PC motherboards & more.
MF-USML PTC Resettable Fuses - Low-profile 1210 package for PC motherboards, game consoles, battery packs & more.
MF-SMDF PTC Resettable Fuses - High voltage (10VDC to 60VDC Vmax) & very low profile in a 2018 footprint.
MF-SM PTC Resettable Fuses - Operating temperature of -40°C to +85°C & fully compatible with current industry standards.
MF-SM/250 PTC Resettable Fuses - Surface-mount device with 60VDC to 250VDC Vmax & packaged per EIA 481-2 standard.
MF-SMHT PTC Resettable Fuses - Choice of operating currents & higher hold currents at elevated temperatures.
MF-SM013/250V PPTC Resettable Fuses - 60VDC to 250VDC Vmax & assists in meeting ITU K.20/K.21/K.45 specifications.
MF-LR PTC Resettable Fuses - Axial leaded, operating currents to 9A, & ideal for applications that require protection at low resistances.
MF-LS PTC Resettable Fuses - 100°C trip temperature & ideal for applications that need extra protection at elevated ambient temperatures.
MF-S PTC Resettable Fuses - 125°C trip temperature, very low internal resistance, axial leaded, & weldable nickel terminals.
MF-SVS PTC Resettable Fuses - Axial leaded with flexible design options available & fully compatible with industry standards.
MF-VS PTC Resettable Fuses - Axial leaded, weldable nickel terminals, & low switching temperature.
MF-VS Narrow Body PTC Resettable Fuses - 3.6mm narrow design axial strap & operating temperature of -40°C to +85°C.
CMF-RL Resettable Fuses - Radial-leaded devices with narrow resistance tolerance & used as secondary overcurrent protection.
CMF-SDP Telecom CPTC Resettable Fuses - Two resistance-matched PTCs in plastic housing for secondary overcurrent protection.
