ECS ECX-.327-CDX-2096 32.768KHz Tuning Fork Crystal
ECS ECX-.327-CDX-2096 32.768KHz SMD Tuning Fork Crystal features a compact 3.2mm x 1.5mm x 0.9mm ceramic package. This ultra-miniature crystal offers a 32.768KHz frequency and a low max ESR of 50KΩ. The series has a frequency tolerance of ±5ppm. ECS ECX-.327-CDX-2096 32.768KHz SMD Tuning Fork Crystal is ideal for mobile devices, real-time clocks, and wireless applications.
Features
- 0.9mm low profile
- 3.2mm x 1.5mm footprint
- RoHS compliant
Applications
- Mobile devices
- Real-time clocks
- Wireless devices
Specifications
- 32.768KHz frequency
- ±5 frequency tolerance
- 1.3pF typical shunt capacitance
- 12.5pF typical load capacitance
- 0.5μW maximum drive level
- 50KΩ maximum ESR
- -40°C to +85°C operating temperature range

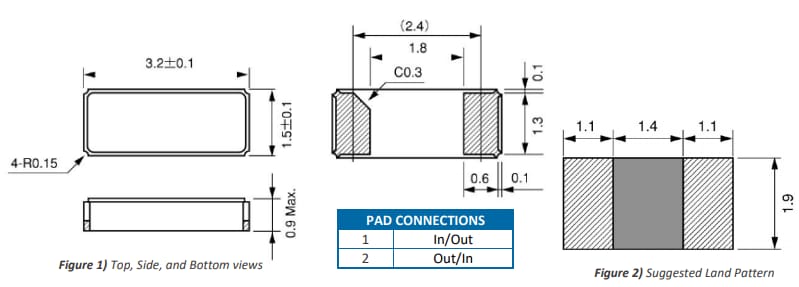

Dimensions (mm)
