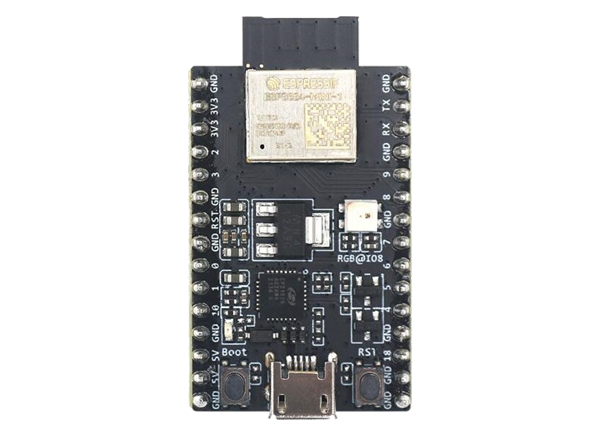

Espressif Systems ESP8684-DevKitM-1 Development Kit
Espressif Systems ESP8684-DevKitM-1 Development Kit is an entry-level development board based on ESP8684-MINI-1. The ESP8684-MINI-1 is a general-purpose module with 1MB/2MB/4MB SPI flash. The ESP8684-DevKitM-1 board integrates comprehensive Wi-Fi® and BLUETOOTH® LE functions. The board offers easy interfacing with the I/O pins broken out to the pin headers on both sides. Users can connect peripherals with jumper wires or mount the ESP8684-DevKitM-1 on a breadboard.
Required Equipment
- ESP8684-DevKitM-1
- USB 2.0 cable (Standard-A to Micro-B)
- Computer running Windows, Linux, or macOS
Associated Products
Espressif Systems ESP8684-MINI Small Wi-Fi® & BLUETOOTH® 5 Modules
Modules are built based on the ESP8684 series of SoCs with a RISC-V single-core microprocessor.
Espressif Systems ESP8684 Ultra Low Power SoCs
A highly-integrated MCU-based SoC solution. The supports 2.4GHz Wi-Fi® & BLUETOOTH® Low Energy.

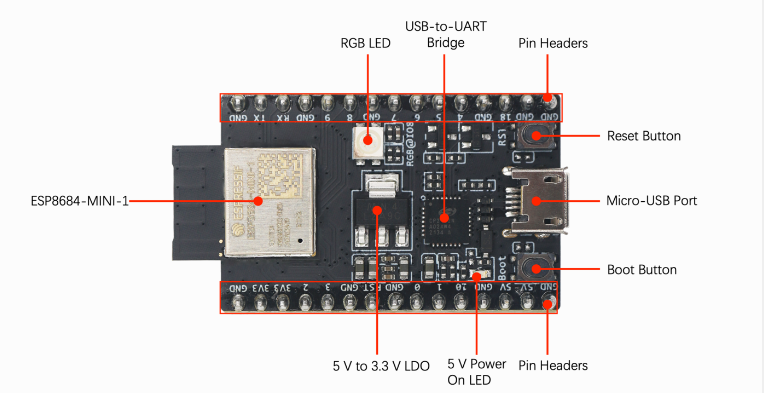

Components

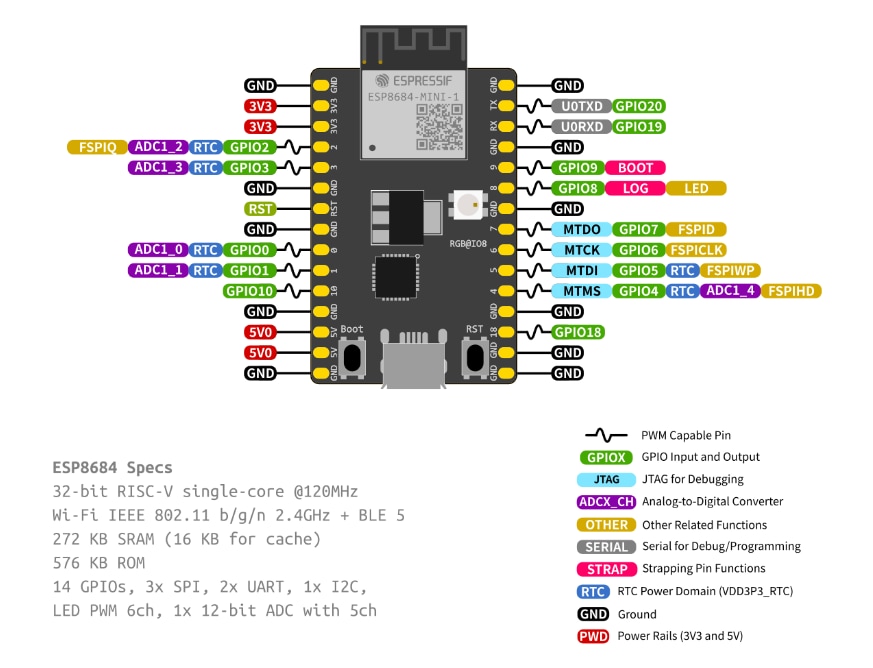

PIN Assignments
Publicado: 2022-06-17
| Atualizado: 2022-06-24
