Microchip Technology 32-Bit SAM 4 Microcontrollers
Microchip Technology 32-Bit SAM 4 Microcontrollers are based on the Arm® Cortex®-M4 core, operate at a maximum CPU speed of 120MHz, and feature up to 2048KB of Flash and up to 128KB of SRAM. The SAM 4 MCU family includes the connectivity-rich SAM 4E MCUs, the low-power SAM 4L MCUs, and the entry-level SAM 4N MCUs.
The Microchip Technology SAM 4E MCUs offer a 10/100 Mbps Ethernet MAC supporting IEEE 1588 and dual CAN. With a single-precision FPU, advanced analog features, and security with 128-bit Advanced Encryption Standard (AES), the SAM 4E MCUs are ideal for industrial automation and building control applications.
The SAM 4L MCUs deliver an ultra-low-power in active mode (down to 90µA/MHz) as well as a sleep mode with full RAM retention (1.5µA) and a short wake-up time (down to 1.5µs). Integrated QTouch® technology enables capacitive touch functionality without any external components.

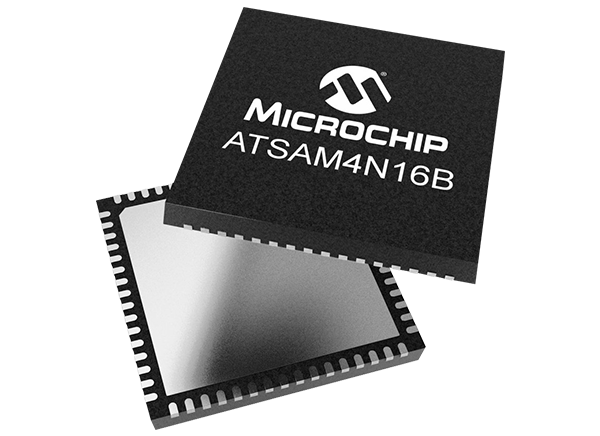

The SAM 4N MCUs are entry-level Cortex-M4 based devices with has seven UARTs, four SPIs, and three I2Cs. Additional features include 12-bit ADC, 10-bit DAC, integrated voltage reference, multiple timers, and PWM.
The SAM 4S MCUs offer memory densities up to 2MB of Flash, with dual bank capability, and 160KB of SRAM.
Features
- SAM 4E MCUs
- 120MHz CPU clock speed
- Up to 1024KB Flash
- 2KB of cache memory
- Up to 128KB SRAM
- Connectivity: 10/100Mbps Ethernet MAC supporting IEEE® 1588, dual CAN, Full-Speed USB
- Wide range of peripherals: USART, UART, SPI
- Advanced Analog: Dual 1Msps, 12-bit Analog-to-Digital Converters (ADCs) up to 16-bit with averaging, up to 24 channels with an analog front end, offering offset error correction and gain control
- One two-channel 12-bit 1Msps Digital-to-Analog Converter (DAC)
- Four-channel 16-bit Pulse-Width Modulator (PWM) with complementary output
- Single precision Floating Point Unit (FPU)
- SAM 4L MCUs
- 48MHz CPU clock speed
- Up to 512KB Flash
- Up to 64KB SRAM
- picoPower® technology for ultra-low power consumption, enabling long battery life
- Active mode down to 90µA/MHz with configurable voltage scaling
- High performance and efficiency: 28 Coremark®/mA
- Wait mode down to 3µA with fast wake-up time (<1.5µs)
- Full RAM and logic retention mode down to 1.5µA with fast wake-up time (<1.5µs)
- Embedded hardware capacitive touch module based on QTouch® technology for fast development of touch and proximity functionality
- Wide range of peripherals: Full-Speed USB host and device, 128-bit AES, USART, SPI, I2C, Event System
- SAM 4N MCUs
- 100MHz CPU clock speed
- Up to 1024KB Flash
- Up to 80KB SRAM
- Serial communication: Seven UARTs, four SPIs, three I2Cs
- One 10-bit Analog-to-Digital Converter ADC up to 510ksps (up to 12-bit with digital averaging)
- One 10-bit 1Msps Digital-to-Analog Converter (DAC)
- Low-power modes: Sleep, Wait and Backup down to 0.7µA in backup mode with Real-time Clock (RTC), Real-time Timer (RTT), and General Purpose Backup Registers (GPBRs)
- Easy migration within the portfolio of products
- Pin-to-pin compatibility with SAM 4S, SAM 3S, SAM 3N, and SAM 7S devices
- Pin-to-pin compatibility with SAM 4S, SAM 3S, SAM 3N, and SAM 7S devices
- SAM 4S MCUs
- 120MHz CPU clock speed
- Up to 2048KB Flash, dual bank, 2KB cache memory
- Up to 160 KB SRAM
- Low-power modes: Sleep, Wait, and Backup; consumption down to 1µA in Backup mode
- Safety and security
- Integrated best-in-class hardware code protection: Prevents access to on-chip memory to protect your Intellectual Property (IP)
- Supports secure device reconditioning (chip erase) for reprogramming
- Unique 128-bit ID and scrambled external bus interface ensure software confidentiality
- Hardware Cyclic Redundancy Check (CRC) to check memory integrity
- Pin-to-pin and software compatible with SAM 3 Arm Cortex-M3 processor-based MCUs
Applications
- SAM 4E MCUs
- Industrial automation
- Machine-to-machine communications
- Home and building control applications
- Automotive
- Energy management applications
- SAM 4L MCUs
- Power-sensitive designs in
- Industrial
- Health care
- Consumer
- Power-sensitive designs in
- SAM 4N MCUs
- Industrial automation
- Consumer applications
- Appliances
- Energy meters
- SAM 4S MCUs
- Industrial control
- Consumer applications
- PC peripherals
