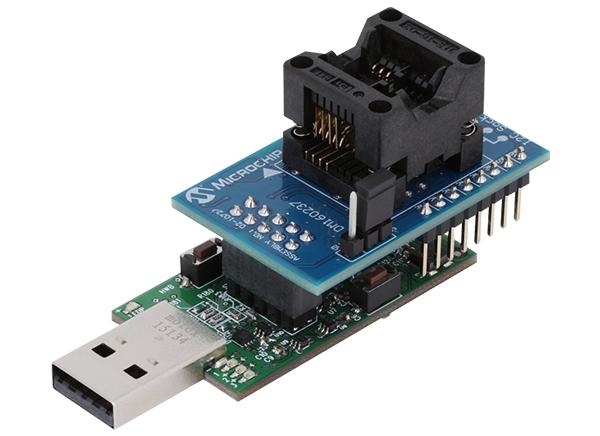

Microchip Technology Serial Memory I2C Evaluation Kit (DM160237)
Microchip Technology Serial Memory I2C Evaluation Kit (DM160237) is used to demonstrate the functionality of the Microchip I2C Serial EEPROM devices. The included Graphical User Interface (GUI) makes it easy to configure and evaluate I2C Serial EEPROMs. It shortens the overall development time needed to bring designs from prototype to production.
Features
- Supports Microchip's I2C (2-wire) Interface Protocol
- Uses SCL and SDA to communicate with the device
- Variable Socket VCC Voltage
- Variable from 1.5V to 5.5V
- Controlled via inputs from the Graphical User Interface (GUI)
- Includes I2C Graphical User Interface (GUI)
- Supports Windows® 7 or higher operating systems
- Utilizes USB interface to communicate with user's PC
- Supports USB Base Board firmware update via the FLexible In-system Programming (FLIP) Software Utility
- For more details on this software utility, refer to FLIP Software Utility
- Contains AT90USB1287, 8-bit AVR® Microcontroller
- 128KB Flash, 64-pin, USB controller
Supported Devices
Microchip Technology 24AA1025, 24LC1025, 24FC1025 1024K Serial EEPROMs
Low-power 1024K (two 64K x 8) I2C compatible serial EEPROM in 8-pin PDIP, SOIC, and SOIJ packages.
Microchip Technology 24AA1026, 24LC1026, 24FC1026 1024K Serial EEPROMs
Low-power 1024K (one 128K x 8) I2C compatible serial EEPROM in PDIP, SOIC, SOIJ, and TSSOP packages.
Microchip Technology 24AA04/24LC04B/24FC04 4K I2C Serial EEPROMs
4Kb Electrically Erasable PROMs.
Microchip Technology 24AA02, 24LC02B, 24FC02 2K I2C Serial EEPROMs
2Kb Electrically Erasable PROMs.
Microchip Technology 24AA01/24LC01B/24FC01 1K I2C Serial EEPROMs
1Kb Electrically Erasable PROM.
