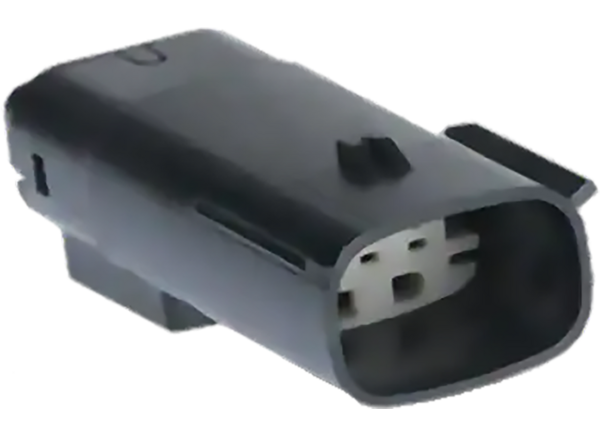

Molex MX150 Automotive Connectors
Molex MX150 Automotive Connector family features sealed and unsealed connectors developed with the automotive/transportation market in mind. These pre-assembled, fully submersible, and high-performance connectors offer a reduced package size and are available in SAE- and ISO-style wire in single- and dual-row configurations for low-level signal and power applications up to 22A. The connectors are well-suited for exterior and under-the-hood applications. Molex MX150L Industrial Sealed Connector System supports both low-level signal applications as well as power applications up to 40A, from marine to off-road construction equipment applications. The MX150 unsealed connectors are compact, high-performance connectors for direct or in-line mid-power harness applications (22AWG to 14AWG wire).
Features
- Sealed and unsealed
- Pre-assembled TPA housing
- Assures crimped terminal leads are properly locked into connector; TPA will not seat into final locked position and connector system will not latch if terminal is not locked
- One-piece housing and TPA provide applied cost savings
- 1.50mm low insertion force terminal system
- Widely deployed terminal system provides high-performance connection for mid-power (22AWG to 14AWG) applications
- Pre-assembled TPA housing
- Unsealed
- Reduced package size with 37% overall space savings achieved over traditional USCAR 1.50mm connectors
- Enlarged push surface with ergonomic design for convenient mating and unmating, USCAR-25 compliant
- Up to 4 polarization options by color and custom clip slots for quick visual installation and design flexibility
- Terminals
- Tin, silver, and gold options for blade and receptacle matte seal and cable seal terminals
- Reliable, economic connectivity
- Current rating up to 22A
- Sealed
- Conforms to USCAR-20 (FCLT) / USCAR-2 Rev 4 / USCAR-21
- For use in on-engine, high vibration, under-hood, and under-chassis environments at class 3 temperatures
- Options include panel-mount gasket seal, high-temperature thermoplastic housing, and M3 grip terminal
- 3.50mm pitch housing design supports single-row configurations for 2 to 6 circuits and dual-row configurations for 4, 6, 8, 12, 16, 20 and 16 circuit hybrid
- Protective matte-seal cap (standard connectors) protects, securely retains, and provides strain relief to wire seal interface
- Mat seal technology for MX150 (1.50mm) terminals eliminates need for individual cable seals, reducing package size and costs
- USCAR interface
- V0 versions available (UL 1977 certified)
- 16-, 12-, 10-, and 8-way connectors for versatility
- Single- and dual-row backshells/wire dress covers for strain relief and additional protection of the wires out the back of the connector
- Conforms to USCAR-20 (FCLT) / USCAR-2 Rev 4 / USCAR-21
Applications
- Automotive vehicles
- Commercial vehicles
- Industrial vehicles and equipment
- Recreational vehicles
- Construction equipment
- Marine equipment
Videos
MX150 Types
Molex Conectores Selados Passantes MX150
Uses rugged & proven MX150 connector design to provide oil-resistant connections for signal wiring.
Molex Conectores de Média Tensão MX150
Designed to meet the growing demand in the automotive industry for 48V electrical systems.
Molex MX150 Sealed Connector System
Pre-assembled, fully-submersible MX150 high-performance connectors with a reduced package size.
Molex MX150 Unsealed Connectors
Compact, unsealed connectors for use in mid-power (22AWG-14AWG wire) transportation applications.
Molex MX150L Industrial Sealed Connector System
Rugged, environmentally sealed connector system supporting signal and power applications up to 40A.
